Din Union Tee Complete

Description & Features

Constructed from steel, this three-way fitting delivers consistent M20 x 1.5 male DIN tube connections on all three ports, making it well suited for hydraulic circuits that require a branch point within a tube assembly. All three sides share the same S12 size callout, allowing symmetrical tube routing without adapters or size mismatches at the junction.

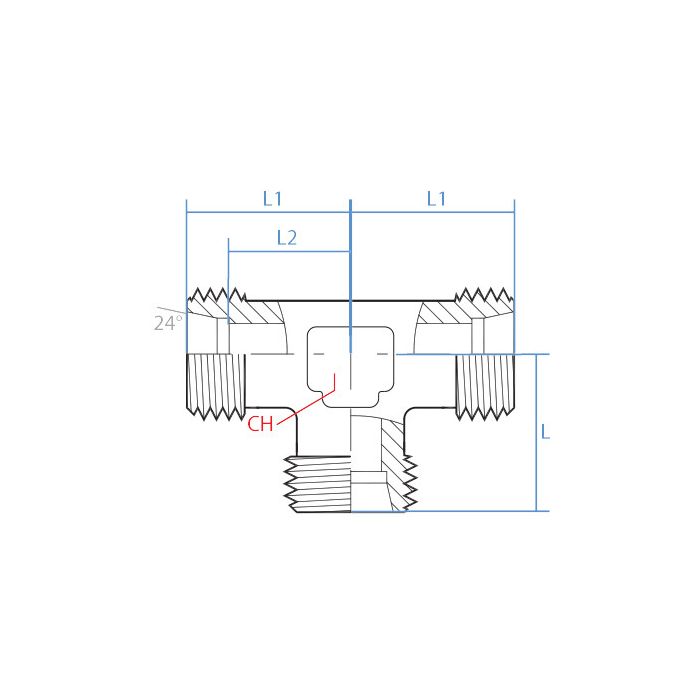

The Din Union Tee Complete is an Adaptall product, engineered to DIN standards and compatible with standard DIN tube fittings across each port. With a ch width of 17mm, an L1 length of 29mm, and an L2 length of 21.5mm, the fitting is compact enough for installations where space around the connection point is limited.

SKU: 5080S-12C

Supplier Part Number (MPN): 5080S-12C

Specifications

CH Width 17mm	L1 Length 29mm	L2 Length 21.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Side 3 Callout M20 X 1.5	Side 3 Gender M	Side 3 Size S12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080S-12C	Product Weight 0.29 lbs

Product Questions & Answers (3)

Question by: Randy H on Jun 27, 2025, 5:52 PM

All three ports on this tee are the same size and thread, right? Just want to make sure I ain't gotta mess with any adapters to get it runnin in a straight branch setup.

Answer by: Customer Support on Jun 29, 2025, 6:31 AM

Every port on this fitting carries an M20 x 1.5 male DIN tube connection at the S12 size callout, so all three sides match up without needing any additional adapters at the junction. That symmetrical layout is exactly what makes it practical for branching a hydraulic line cleanly in one spot.

Question by: Shane M on Apr 6, 2026, 7:44 AM

Reckon this tee fitting would hold up alright in a hydraulic setup that's runnin' pretty much non-stop?

Answer by: Customer Support on Apr 8, 2026, 6:25 AM

This fitting is constructed from steel, so it offers good durability for demanding hydraulic applications where you need a reliable branch point.

Question by: Dale C on Jan 29, 2026, 5:20 PM

trying to tee off a tube run, are all three ends on this thing the same size or am i gonna need adapters

Answer by: Customer Support on Jan 30, 2026, 5:44 PM

All three ports are the same connection. Each side is an S12 DIN tube male with an M20 x 1.5 thread, so it is set up for a straight three way branch without mixing sizes.
