Din Union Tee

Description & Features

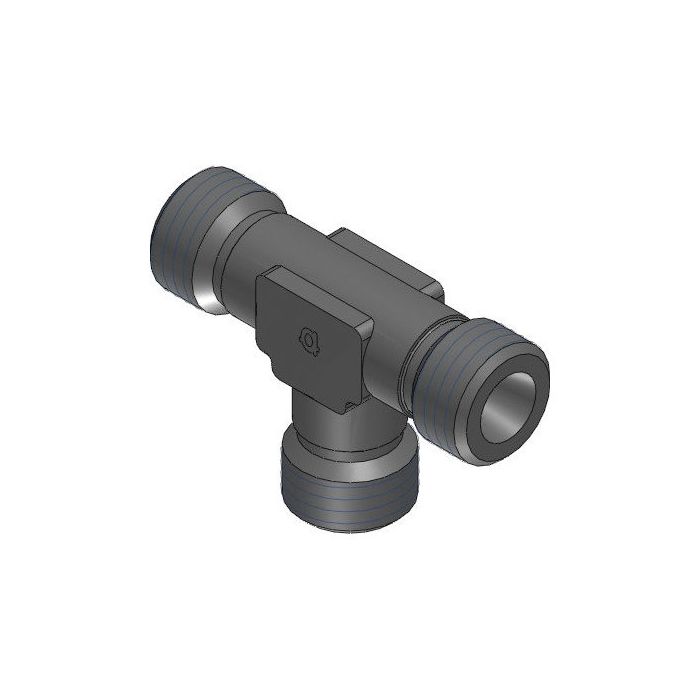

This Adaptall America Din Union Tee features three DIN tube connections, each with a M22 x 1.5 callout and S14 size.

Constructed from durable steel, this tee fitting ensures reliable performance in demanding hydraulic applications. Each side is male (M) gendered.

The Adaptall Ch Width is 19mm, Adaptall L1 Length is 30mm, and Adaptall L2 Length is 22mm.

SKU: 5080S-14

Supplier Part Number (MPN): 5080S-14

Specifications

Brand adapt-all	Connection Size 1 14 mm	Connection Size 2 14 mm	Connection Size 3 S14	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Connection Type 3 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353	Dimensions 61 mm L	Finish Zinc-Plated	Fitting Type Tee	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5080 Series	Thread Size M22x1.5

Product Questions & Answers (1)

Question by: Rex F on May 14, 2025, 7:28 PM

All three ports on this tee are M22 x 1.5, right? Just want to make sure before I go ordering a bunch of these for a job we got coming up.

Answer by: Customer Support on May 15, 2025, 8:38 PM

Correct on all three. Each port carries an M22 x 1.5 thread, and all three sides are male DIN tube connections in the S14 size. So if your lines are set up for that thread on every branch, this tee will tie them together without any adapters in between.
