Din Union Tee Complete

Description & Features

Constructed from durable steel, the Adaptall Din Union Tee Complete is engineered for robust industrial applications. This tee fitting features a precise M36 x 2.0 thread size on all three sides, ensuring a secure connection for DIN tube systems. With a width of 37mm and lengths of 42mm and 30mm on its respective sides, it is designed for optimal compatibility and ease of installation in complex hydraulic configurations.

Its male gender design on all connection points makes it suitable for various hydraulic systems requiring dependable and leak-proof connections. The Adaptall brand stands for reliability and precision, making this Din Union Tee Complete a trusted choice for professionals who demand high-quality components in their hydraulic systems.

SKU: 5080S-25C

Supplier Part Number (MPN): 5080S-25C

Specifications

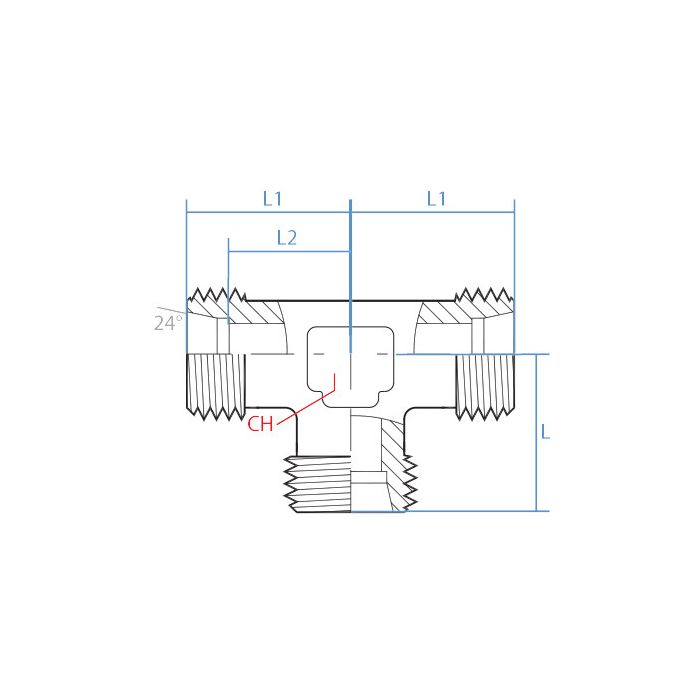

CH Width 37mm	L1 Length 42mm	L2 Length 30mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Side 3 Callout M36 X 2.0	Side 3 Gender M	Side 3 Size S25	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080S-25C	Product Weight 1.17 lbs

Product Questions & Answers (2)

Question by: Phil J on Jun 4, 2025, 3:28 PM

So this is steel, right? Should hold up okay in a shop environment?

Answer by: Customer Support on Jun 6, 2025, 12:40 PM

Correct, this DIN Union Tee is made from steel, which should offer good durability for typical shop use in hydraulic systems.

Question by: Roger T on Jul 25, 2025, 6:36 PM

All three ports on this thing are M36 x 2.0 male, right? Just wanna make sure before I order cause I got female DIN tube fittings on all three legs of my system.

Answer by: Customer Support on Jul 27, 2025, 8:54 AM

Correct on all three. Every port on the 5080S-25C runs M36 x 2.0 male, so you'll need female DIN tube connections on each leg to mate up properly. All three sides are also rated S25 size, so keep that consistent across your fittings and you should be good to go.
