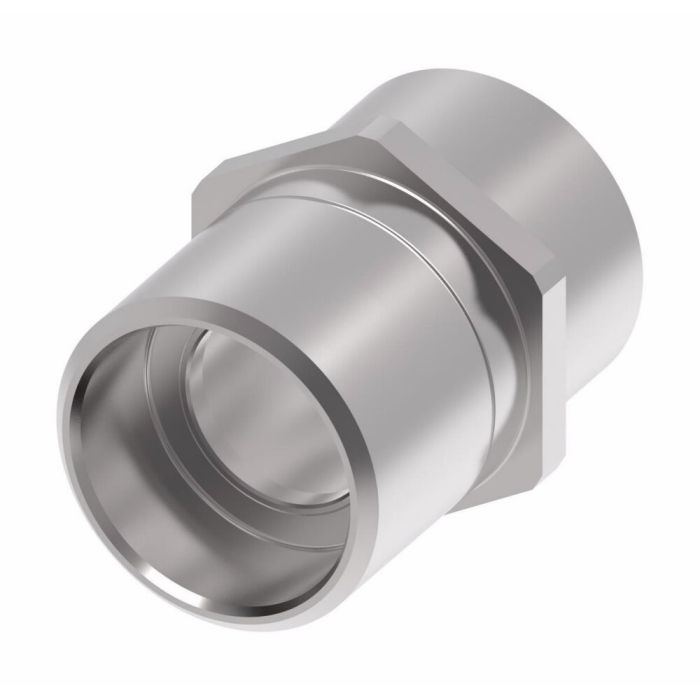

main product photo

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Male Half, -24 Coupling, 1-1/2-11-1/2 Female Pipe

Ask A Question

Description & Features

The 5100 Series Low Spill Connect Under Pressure Quick Disconnect Male Half -24 Coupling 1-1/2-11-1/2 Female Pipe is designed for efficient fluid transfer in demanding hydraulic applications. It is particularly suited for on-highway hydraulic wet lines dump and refuse vehicles and bulk liquid transfer operations.

The tubular valve construction minimizes fluid loss during disconnection reducing environmental and safety risks. Additionally the low air inclusion feature during connection maintains system performance standards.

Available in both wing and hex nut configurations the coupling offers versatility and ease of installation. The capability to connect against pressure up to 500 psi enhances its utility in high-pressure environments. This coupling also features a steel flange for accessible bulkhead mounting.

Standard materials include brass with steel valving components and nuts ensuring durability and reliability. Seal material options include Buna-N Vitonreg; and EPR. The coupling supports a wide range of temperatures from a minimum of -40 degrees Celsius.

Supplier Part Number: 5100-S2-24B

Specifications

A
4.12
Air Inclusion Max
0.60 Cubic_centimeter
Application
Hydraulics and fluid transfer, On-highway hydraulic wet lines, Dump and refuse vehicles, Bulk liquid transfer
B
2.48
Coupling Size
-24
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Type 1
UN
End Type 2
NPTF
Fluid Loss
0.94 Cubic_centimeter
Hex Size 2
2.19
Minimum Working Temperature
-40
Seal Material
Buna-N
Supplier Part Number
5100-S2-24B
Thread 1
1-1/2-11-1/2
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1BS57, Alternate Part Number MI-00297990, Alternate Part Number MINO-00402F46478
Product Weight
2.62 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Action
5100 Series Low Spill Connect Under Pressure Quick Disconnect, Male Half, -12 Coupling, 3/4-14 Female Pipe

5100-S2-12B 5100 Series Quick Disconnect

-12

3/4-14

Buna-N

3.11

1.38

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Male Half, -16 Coupling, 1-11-1/2 Female Pipe

5100-S2-16B 5100 Series Quick Disconnect

-16

1-11-1/2

Buna-N

3.55

1.76

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Male Half, -20 Coupling, 1-1/4-11-1/2 Female Pipe

5100-S2-20B 5100 Series Quick Disconnect

-20

1-1/4-11-1/2

Buna-N

3.71

2.1

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Male Half, -10 Coupling, 1/2-14 Female Pipe

5100-S2-10B 5100 Series Quick Disconnect

-10

1/2-14

Buna-N

3.11

1.38

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Male Half, -24 Coupling, 1-1/2-11-1/2 Female Pipe

5100-S2-24B 5100 Series Quick Disconnect

-24

1-1/2-11-1/2

Buna-N

4.12

2.48

Product Questions & Answers (2)

Question by: Wade S on Dec 15, 2025, 1:45 PM
Is this the right male end to hook up to a 5100 series female fitting? Gotta make sure before I order.
Answer by: Customer Support on Dec 17, 2025, 11:30 AM
This male half coupling is indeed part of the 5100 series and will connect to a corresponding female half. Just verify the coupling size (-24) and female pipe thread (1-1/2-11-1/2) match your existing setup.
Question by: Kirk A on Aug 17, 2025, 2:12 PM
can this coupling connect while there's still pressure in the line, or do you have to bleed the system down first?
Answer by: Customer Support on Aug 18, 2025, 6:30 PM
Up to 500 psi, you can connect it without depressurizing the line first. That's one of the main reasons this fitting gets used on dump trucks and refuse vehicles where stopping to bleed pressure out of a wet line just isn't practical. The tubular valve design also keeps fluid loss minimal when you disconnect, so you're not dealing with a spill every time you break the connection.
