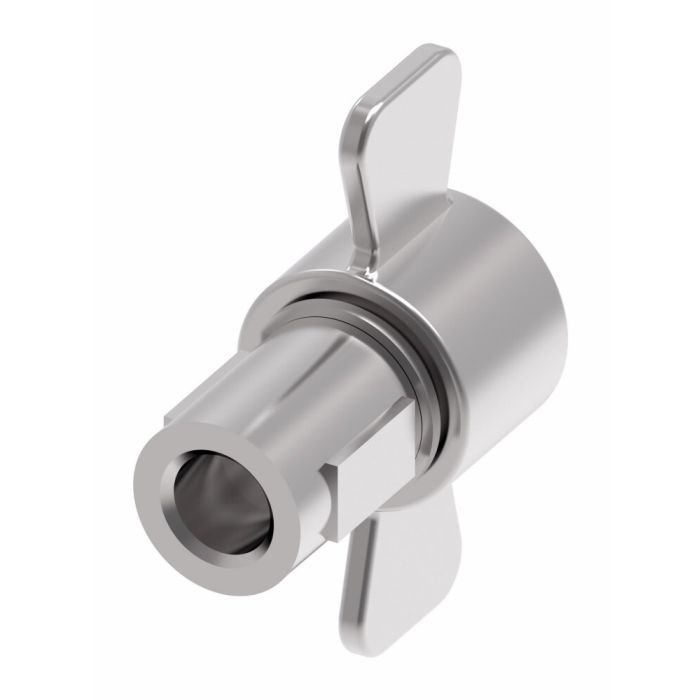

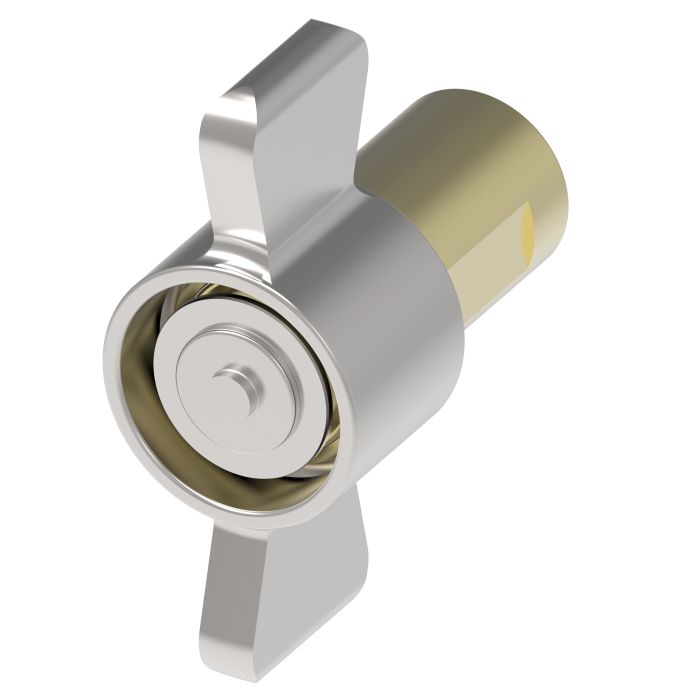

main product photo

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Female Half, -16 Coupling, 1-11-1/2 Female Pipe

Ask A Question

Description & Features

The Eaton Fluid Coupling 1 FP part of the Danfoss Power Solutions (II LLC Aeroquip) 5100 Series is designed for hydraulics and fluid transfer applications. Its tubular valve construction minimizes fluid loss during disconnection reducing environmental and safety risks. The coupling features low air inclusion to maintain system performance and is capable of connecting against pressure up to 500 psi.

Buna-N is used for the standard seal material ensuring reliable sealing under various conditions. The coupling is available with wing or hex nut configurations for flexible installation approaches and includes a steel flange for accessible bulkhead mounting. Made from brass with steel valving components this quick disconnect coupling is robust and durable.

Fluid loss is limited to 0.35 cubic centimeters and maximum air inclusion is 0.50 cubic centimeters. It features 1-11-1/2 NPTF threading for secure connections. The product is suitable for on-highway hydraulic wet lines dump and refuse vehicles and bulk liquid transfer applications and it can operate in temperatures as low as -40deg;C.

Supplier Part Number: 5100-S5-16B

Specifications

A
3.67
Air Inclusion Max
0.50 Cubic_centimeter
Application
Hydraulics and fluid transfer, On-highway hydraulic wet lines, Dump and refuse vehicles, Bulk liquid transfer
B
4.38
Coupling Size
-16
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
1
End Size 2
1
End Type 1
NPTF
End Type 2
NPTF
Fluid Loss
0.35 Cubic_centimeter
Minimum Working Temperature
-40
Seal Material
Buna-N
Supplier Part Number
5100-S5-16B
Thread 1
1-11-1/2
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1BS61, Alternate Part Number MI-00331367, Alternate Part Number MINO-00402F71719, Alternate Part Number MINO-00925X11357
Product Weight
1.92 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Action
5100 Series Low Spill Connect Under Pressure Quick Disconnect, Female Half, -12 Coupling, 3/4-14 Female Pipe

5100-S5-12B 5100 Series Quick Disconnect

-12

3/4-14

Buna-N

3.09

4.06

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Female Half, -20 Coupling, 1-1/4-11-1/2 Female Pipe

5100-S5-20B 5100 Series Quick Disconnect

-20

1-1/4-11-1/2

Buna-N

3.98

5.19

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Female Half, -10 Coupling, 1/2-14 Female Pipe

5100-S5-10B 5100 Series Quick Disconnect

-10

1/2-14

Buna-N

3.09

4.06

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Female Half, -16 Coupling, 1-11-1/2 Female Pipe

5100-S5-16B 5100 Series Quick Disconnect

-16

1-11-1/2

Buna-N

3.67

4.38

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Female Half, -24 Coupling, 1-1/2-11-1/2 Female Pipe

5100-S5-24B 5100 Series Quick Disconnect

-24

1-1/2-11-1/2

Buna-N

4.02

5.31

Product Questions & Answers (2)

Question by: Kent H on Feb 4, 2026, 8:33 PM
Will this quick disconnect work with hydraulic fluid, or is it just for water?
Answer by: Customer Support on Feb 6, 2026, 7:15 PM
Designed for hydraulics and fluid transfer applications, this Eaton Aeroquip quick disconnect uses Buna-N seals which are compatible with many hydraulic fluids. You can also review the fluid compatibility document linked on the product page for more details.
Question by: Rod S on Oct 3, 2025, 4:37 PM
does this thing actually connect when there's already pressure in the line, or do you have to bleed it down first?
Answer by: Customer Support on Oct 5, 2025, 12:24 PM
Connecting under live pressure is one of the main things this coupling is built for. It can handle up to 500 psi when mating the halves, so in most working hydraulic setups on dump trucks or wet line systems, you won't need to depressurize before plugging in. That saves real time when you're out in the field and can't easily bleed the system down.
