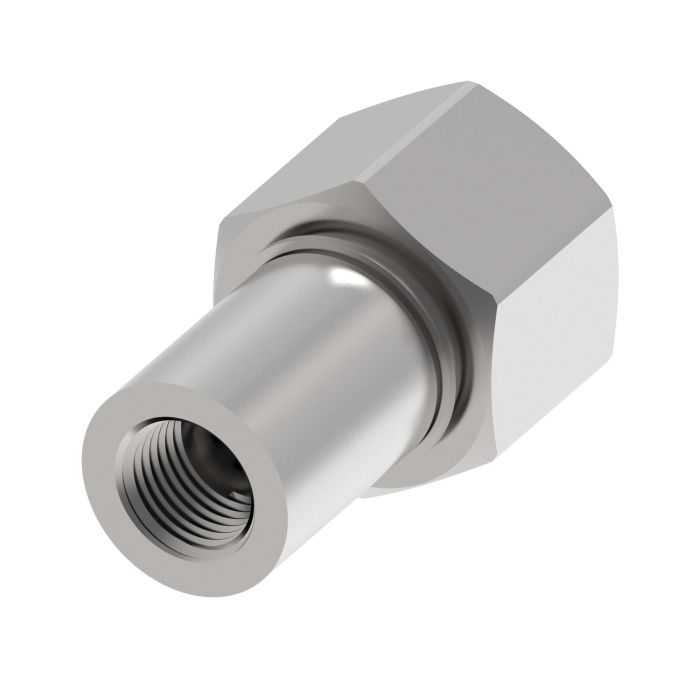

main product photo

DANFOSS / EATON COUPLING

Ask A Question

Description & Features

Designed for on-highway hydraulic wet lines and bulk liquid transfer applications, this brass female half socket from the Danfoss / Eaton Hansen 5100 Series Quick Disconnect Coupling line connects via a 15/16 UNEF female thread on one end and a 1/8 NPTF female thread on the other. The brass construction suits a range of fluid transfer environments, and the coupling is rated for a flow rate of 4 gallons per minute.

As part of the Hansen 5100 Series, this coupling exceeds ISO 16028 operating pressure standards and requires no special tools to connect or disconnect, making it a practical choice for dump vehicles, refuse trucks, and similar mobile hydraulic equipment. The quick-connect design supports fast line changes without fluid spillage or system shutdown.

SKU: 5110-S5-4B

Supplier Part Number (MPN): 5110-S5-4B

Specifications

Brand
Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Female Quick-Disconnect, FNPT
Connection Type 1
Female Quick Disconnect
Connection Type 2
Female NPT
Dimensions
1.32 in Dia x 2.1 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Coupling
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
3000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
5100 Series
Thread Size
1/8-27

Product Questions & Answers (1)

Question by: Floyd S on Jun 21, 2025, 6:16 AM
Reckon this'll work alright for hooking up the hydraulics on my dump truck?
Answer by: Customer Support on Jun 22, 2025, 4:20 PM
It's designed for on-highway hydraulic wet lines, so it should be a good fit for your dump truck's hydraulic connections. It's part of the Hansen 5100 Series, which is commonly used in mobile hydraulic equipment.
