Din X M Mm Adj Run Tee Complet

Description & Features

A steel tee fitting from Adaptall, this adjustable run configuration connects two DIN tube ports with a third metric male port across a compact body. Sides 1 and 2 carry M12 x 1.5 male DIN tube connections at L06 sizing, while Side 3 presents an M10 x 1.0 male metric thread in a 10mm size, making this a practical choice for branching hydraulic circuits where mixed DIN and metric thread standards are required in a single fitting.

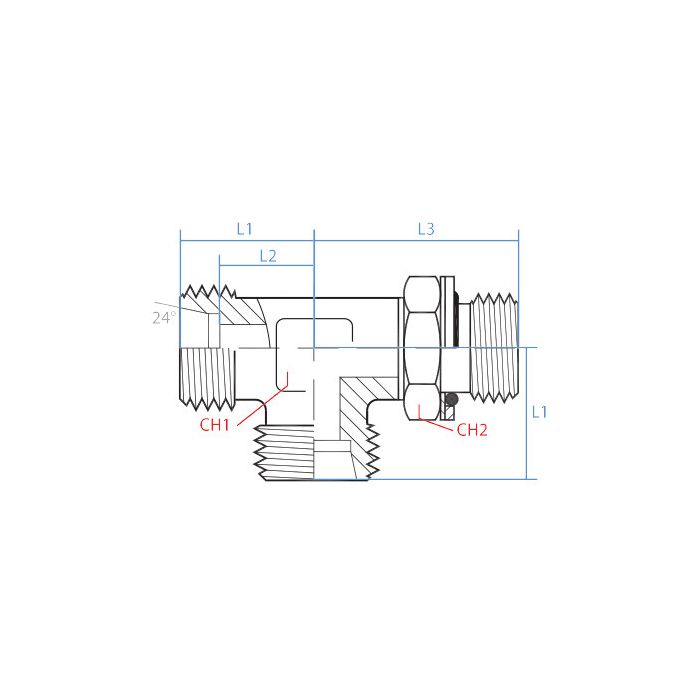

The Din X M Mm Adj Run Tee Complet is constructed from steel for durability in demanding hydraulic environments. Key dimensional references include a Ch1 width of 12mm, Ch2 width of 14mm, and lengths of 19mm, 12mm, and 27mm across L1, L2, and L3 respectively. The adjustable run design allows for positioning flexibility during installation.

SKU: 5168L-06-06-10C

Supplier Part Number (MPN): 5168L-06-06-10C

Specifications

CH1 Width 12mm	CH2 Width 14mm	L1 Length 19mm	L2 Length 12mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Side 3 Callout M10 X 1.0	Side 3 Gender M	Side 3 Size 10mm	Side 3 Type METRIC	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5168L-06-06-10C	Product Weight 0.01 lbs

Product Questions & Answers (1)

Question by: Bonnie K on Mar 27, 2026, 8:25 PM

Got a hydraulic line that splits into two DIN connections on one end and needs a metric thread on the branch port, would this tee fitting handle that kind of setup?

Answer by: Customer Support on Mar 29, 2026, 3:29 PM

That's exactly the kind of situation this fitting is built for. Sides 1 and 2 are both M12 x 1.5 male DIN tube ports at L06 sizing, and Side 3 brings in an M10 x 1.0 male metric thread at 10mm. So if your run needs two DIN connections and a metric branch off the same body, this covers all three without adapting each port separately.
