Din X M Mm Adj Branch Tee Comp

Ask A Question

Description & Features

This steel Din X M Mm Adj Branch Tee Comp features a tee shape and is constructed from durable steel. It adapts between DIN tube and metric connections.

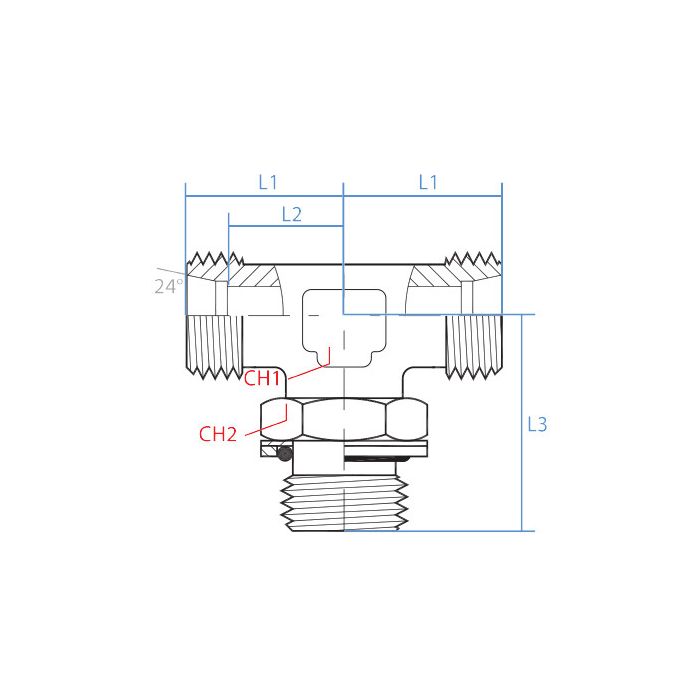

Side 1 and Side 2 both feature M12 X 1.5 male DIN tube connections with a L06 size. Side 3 features a M10 X 1.0 male METRIC connection with a 10mm size. This Adaptall fitting has a Ch1 width of 12mm, Ch2 width of 14mm, L1 length of 19mm, L2 length of 12mm, and L3 length of 27mm.

SKU: 5169L-06-06-10C

Supplier Part Number (MPN): 5169L-06-06-10C

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
6 mm
Connection Size 3
S10
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Connection Type 3
Male Metric
Dimension Standards
DIN 2353, DIN 7631, ISO 6149, ISO 8434-1, ISO 9974
Dimensions
38 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
5169 Series
Thread Size
M12x1.5 x M12x1.5 x M10x1

Product Questions & Answers (3)

Question by: Carl W on Mar 15, 2026, 10:50 AM
Reckon this'll fit a standard DIN setup?
Answer by: Customer Support on Mar 16, 2026, 8:59 PM
This tee fitting adapts between DIN tube and metric connections. Side 1 and Side 2 both feature M12 X 1.5 male DIN tube connections with a L06 size. Side 3 features a M10 X 1.0 male METRIC connection with a 10mm size.
Question by: Bonnie Y on Oct 1, 2025, 11:09 AM
got a line that splits off to a smaller metric port, does this fitting handle both the DIN tube sides and a 10mm metric branch all in one piece?
Answer by: Customer Support on Oct 2, 2025, 4:51 PM
That's what this one does. Two sides run M12 x 1.5 male DIN tube connections at L06 size, and the branch port is a M10 x 1.0 male metric connection at 10mm. So you're pulling together two DIN tube lines and one metric line in a single tee body without needing extra adapters stacked together.
Question by: Norm S on Oct 26, 2025, 5:44 PM
trying to tie two M12 x 1.5 DIN tube lines together and kick off a smaller leg, is that what this tee is set up for?
Answer by: Customer Support on Oct 28, 2025, 2:16 PM
Built as a branch tee, it gives you two matching male DIN tube ends on Side 1 and Side 2 at M12 x 1.5 (L06), plus a third male metric port on Side 3 at M10 x 1.0 (10 mm). That layout fits the “two same lines with a smaller branch” setup you’re describing.
