Metric Light Series Tube Nut

Description & Features

This Metric Light Series Tube Nut is made from steel and features a M18 X 1.5 Side 1 callout.

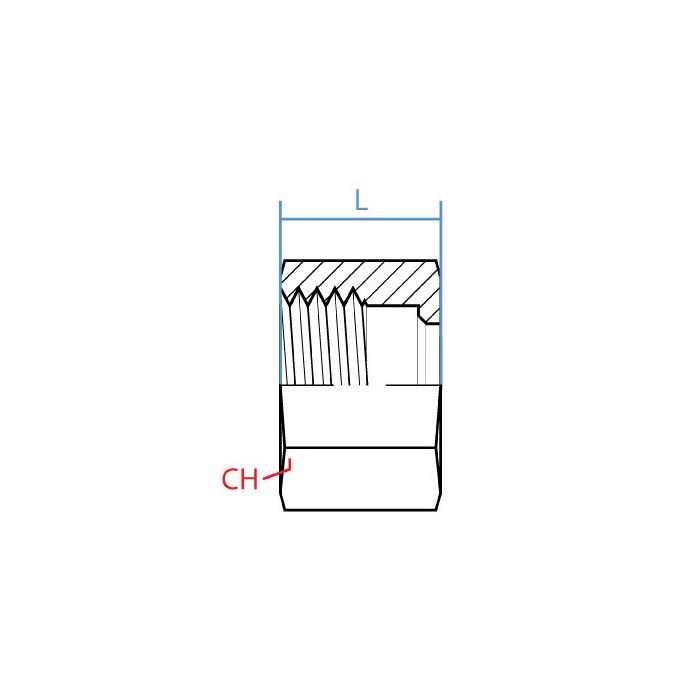

It is a component shaped tube nut with Adaptall dimensions of 22mm Ch Width and 15.5mm L Length. It has a female gender Side 1 and L12 Side 1 size, making it a Din Tube type.

SKU: 5201L-12

Supplier Part Number (MPN): 5201L-12

Specifications

CH Width 22mm	L Length 15.5mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5201L-12	Product Weight 0.06 lbs

Product Questions & Answers (3)

Question by: Randy G on Jul 30, 2025, 9:30 PM

What size wrench you need to get on this nut when you're tightening it down?

Answer by: Customer Support on Aug 1, 2025, 12:53 PM

The wrench size you're after is 22mm. That's the across-flats measurement for this nut, so a standard 22mm wrench or socket will seat on it clean.

Question by: Howard H on Jul 14, 2025, 12:02 PM

trying to match up a tube nut i pulled off, what thread is this one cut for

Answer by: Customer Support on Jul 16, 2025, 9:42 AM

The Side 1 callout on this tube nut is M18 x 1.5, and it is a female DIN tube style nut in size L12.

Question by: Gene S on Aug 11, 2025, 6:34 PM

Is this nut made of steel all the way through?

Answer by: Customer Support on Aug 12, 2025, 8:15 PM

That's correct, the Adaptall material is steel.
