Din Metric Tube Plug Light

Description & Features

Engineered to meet exacting industry standards the Din Metric Tube Plug Light offers durability and reliability in various industrial contexts. Its construction from high-quality steel assures long-lasting performance and robustness.

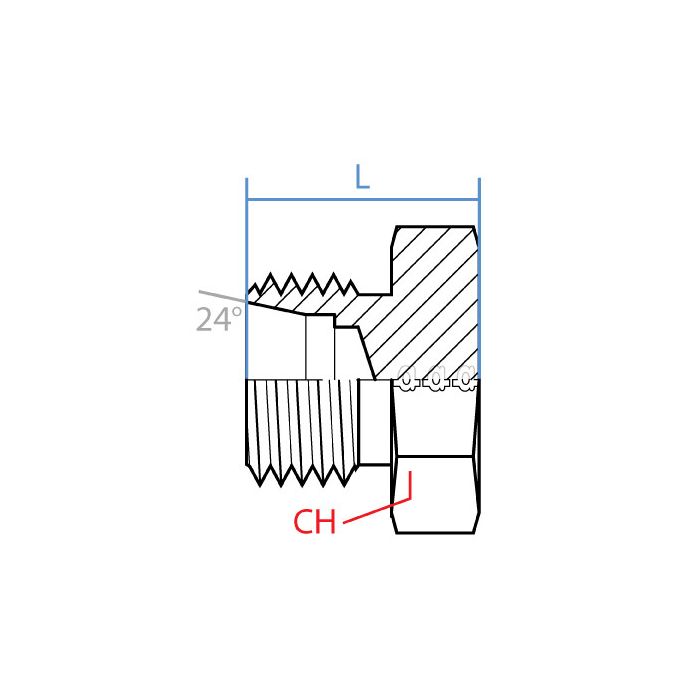

Featuring a male M30 x 2.0 Din tube connection this plug guarantees a secure and precise fit. With a length of 23mm and a width of 32mm it is specifically designed for exact technical requirements. Its straightforward design obviates the need for additional calibration or adjustments.

This tube plug does not incorporate a check valve battery or electrical components simplifying maintenance and use. Its solid build delivers optimal performance in challenging environments.

Brand: Adaptall America

Supplier Part Number: 5203L-22

Specifications

Brand adapt-all	Connection Size L22	Connection Size 1 L22	Connection Type Male Metric	Connection Type 1 Male DIN 24 deg Tube	Dimension Standards DIN 2353	Dimensions 20 mm L	Finish Zinc-Plated	Fitting Type Plug	Hex Size 32 mm	Material Steel	Material Construction Carbon Steel	Series 5203 Series	Thread Size M30x2

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size	Connection Size
5203L-06	6 mm	M12x1.5	12 mm	S06
5203L-08	8 mm	M14x1.5	14 mm	#8
5203L-10		M16x1.5	17 mm
5203L-12	L12	M18x1.5	19 mm
5203L-15	L15	M22x1.5	24 mm
5203L-18	18 mm	M26x1.5	27 mm	L18
5203L-28	L28	M36x2	41 mm	L28
5203L-35		M45x2		L35
5203L-42	L42	M52x2	55 mm	L42

Product Questions & Answers (2)

Question by: Merle S on Aug 6, 2025, 9:55 AM

got a din tube port with M30 x 2.0 threads, is this plug the right match?

Answer by: Customer Support on Aug 8, 2025, 8:45 AM

The key detail is the male DIN tube connection listed as M30 x 2.0, size L22. If your port is a DIN tube connection that takes an M30 x 2.0 male plug, this one matches those thread and connection callouts.

Question by: Billy W on Mar 23, 2026, 1:08 PM

Will this plug hold up in a hydraulic system or is it just for capping off lines?

Answer by: Customer Support on Mar 25, 2026, 11:51 AM

Constructed from high-quality steel, this plug is designed for durability and reliable performance in industrial settings. It's built to withstand challenging environments, ensuring a secure fit with its M30 x 2.0 Din tube connection.
