Din Metric Tube Plug Light

Description & Features

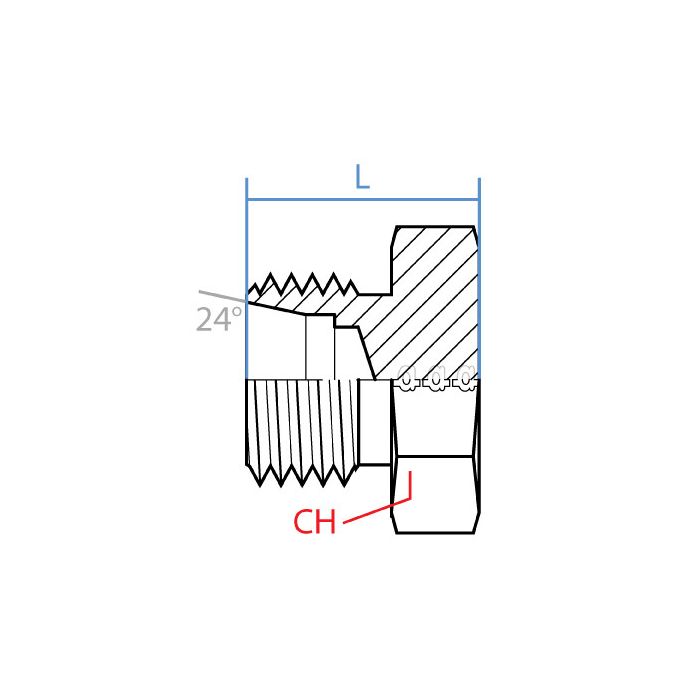

This Adaptall Din Metric Tube Plug Light is constructed of steel and features a M52 X 2.0 Side 1 Callout. The Adaptall Ch Width is 55mm and the Adaptall L Length is 30mm. It has a M Side 1 Gender, a L42 Side 1 Size, and a Din Tube Side 1 Type.

SKU: 5203L-42

Supplier Part Number (MPN): 5203L-42

Specifications

CH Width 55mm	L Length 30mm	Adaptall Material Steel	Adaptall Shape Plug	Side 1 Callout M52 X 2.0	Side 1 Gender M	Side 1 Size L42	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5203L-42	Product Weight 0.86 lbs

Product Questions & Answers (2)

Question by: Kent P on Oct 14, 2025, 10:22 AM

What size thread does this plug use, and what's it made out of?

Answer by: Customer Support on Oct 16, 2025, 6:50 AM

Steel construction, M52 X 2.0 thread on the male end. The across-flats wrench width is 55mm, so make sure you got the right wrench before you go to install it. Part number is 5203L-42 if you need to cross-reference anything on your end.

Question by: Roy M on Mar 26, 2026, 7:59 AM

got a DIN tube port that calls for M52 x 2.0, is this plug the right thread?

Answer by: Customer Support on Mar 28, 2026, 7:43 AM

Match it up to the callout and it lines up with an M52 x 2.0 male DIN tube plug on side 1. The side 1 size is L42, and it is built as a plug shape for that DIN tube connection.
