Metric Tube Cap

Description & Features

This ADAPTALL America Metric Tube Cap is engineered for precision and durability in metric hydraulic applications. Made from robust steel, it offers reliable sealing and protection for your metric tubes.

The cap features an M16 X 1.5 thread size, fitting seamlessly on L10 dimensions with a female connection type. Its compact structure, with a width of 19mm and a length of 15.5mm, ensures easy installation and maintenance in various industrial settings.

Ideal for use in systems requiring a secure and tight seal, this product guarantees long-lasting performance without the need for additional accessories like thread sealant or adjustment tools. The steel material ensures exceptional resistance to wear and corrosion, making it suitable for demanding environments.

With no need for calibration or additional components such as diodes or check valves, this tube cap simplifies the assembly process, saving time and effort.

MPN: 5204L-10

Supplier Part Number: 5204L-10

Specifications

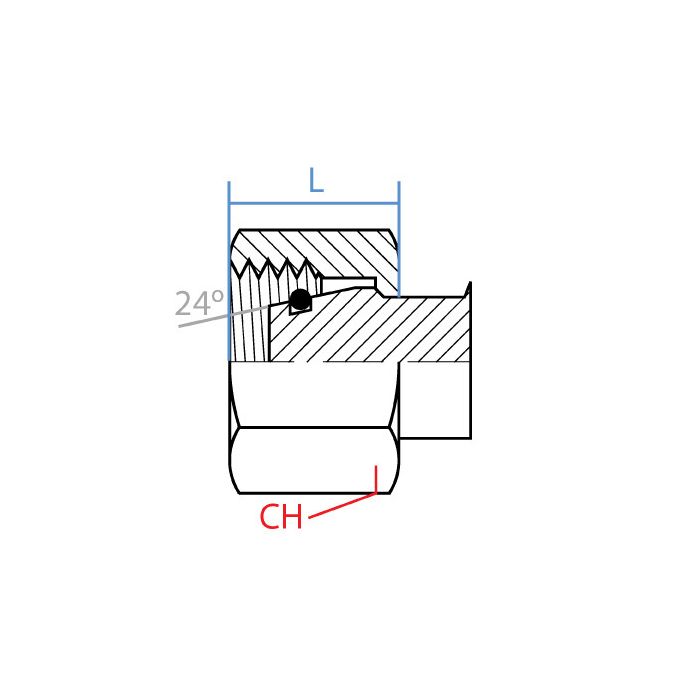

CH Width 19mm	L Length 15.5mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout M16 X 1.5	Side 1 Gender F	Side 1 Size L10	Side 1 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08734025, Alternate Part Number MINO-03671X96016	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5204L-10	Product Weight 0.01 lbs

Product Questions & Answers (4)

Question by: Shawn S on Jan 21, 2026, 10:49 AM

trying to cap off a DIN tube port, is this the one with M16 x 1.5 female threads?

Answer by: Customer Support on Jan 23, 2026, 6:24 AM

The key callout on this cap is a female M16 x 1.5 DIN tube connection on side 1, listed as size L10.

Question by: Cheryl H on Jan 19, 2026, 1:49 PM

fitting says M16 x 1.5 on the thread side, that match up with standard DIN tube fittings?

Answer by: Customer Support on Jan 20, 2026, 6:21 PM

M16 x 1.5 is the thread callout on the female DIN tube side, so yes, it seats onto a standard DIN tube end at that specification. The cap is an L10 size, which corresponds to that thread designation in the DIN metric tube fitting system. As long as your open port is an M16 x 1.5 DIN tube fitting, this cap closes it off cleanly.

Question by: Ray W on Apr 5, 2025, 6:42 AM

What size wrench do I need for this lil' feller?

Answer by: Customer Support on Apr 6, 2025, 8:30 PM

You'll need a 19mm wrench for the flats on this metric tube cap.

Question by: Neil A on Apr 16, 2025, 7:51 AM

got an L10 metric tube sittin open on my manifold right now, will this cap thread right onto it?

Answer by: Customer Support on Apr 17, 2025, 2:37 PM

M16 x 1.5 is the thread size on this cap, and it's sized specifically for L10 DIN tube connections. If your open port matches those specs, it'll seat without any adapter or extra hardware needed.
