Metric Tube Cap

Description & Features

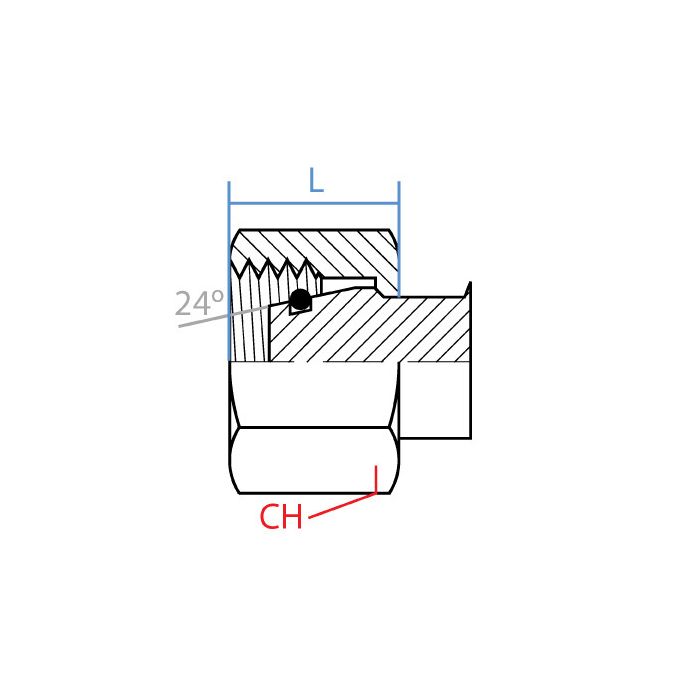

Designed to seal and protect unused metric tube ports, this steel cap fitting from Adaptall terminates an M16 x 1.5 Din Tube connection on the female side. With a compact profile, 16.5mm in length and a 17mm across the wrench flats, it suits tight installations where a clean, secure port closure is needed without adding unnecessary bulk.

The Metric Tube Cap is manufactured in steel and follows DIN tube fitting standards, making it compatible with standard metric hydraulic tube assemblies. Its female Din Tube interface accepts the corresponding male tube end, providing a reliable seal for capped-off ports during system assembly, testing, or when a circuit branch is temporarily or permanently decommissioned.

SKU: 5204S-08

Supplier Part Number (MPN): 5204S-08

Specifications

CH Width 17mm	L Length 16.5mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout M16 X 1.5	Side 1 Gender F	Side 1 Size S08	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5204S-08	Product Weight 0.05 lbs

Product Questions & Answers (1)

Question by: Sherry W on May 14, 2025, 6:14 AM

Will this cap fit a standard M16 x 1.5 metric tube?

Answer by: Customer Support on May 15, 2025, 8:57 AM

This Adaptall metric tube cap is designed to fit a female DIN swivel with an M16 x 1.5 callout, which corresponds to an S08 size.
