Metric Tube Cap

Description & Features

The ADAPTALL AMERICA Metric Tube Cap is expertly crafted for precise fitting with M20 X 1.5 threaded connections. This steel cap offers durability and reliability in various industrial applications.

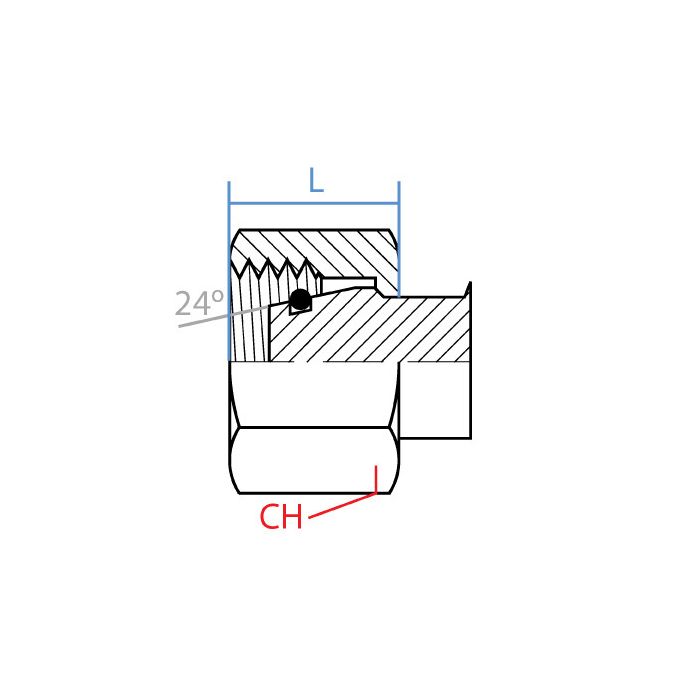

Designed as a cap it ensures a secure and tight fit with a CH Width of 22mm and a Length of 17.5mm. The Metric Tube Cap is an essential component for systems requiring a female Din Tube type connection of size S12.

Notably it lacks additional elements such as adjustment a check valve a diode or any form of color-coding making it a straightforward and efficient part for specific technical needs.

Supplier Part Number: 5204S-12

Specifications

CH Width 22mm	L Length 17.5mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout M20 X 1.5	Side 1 Gender F	Side 1 Size S12	Side 1 Type Din Tube	Alternate Part Numbers Alternate Part Number 5204S-012	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5204S-12	Product Weight 0.12 lbs

Product Questions & Answers (1)

Question by: Dean B on Sep 3, 2025, 8:19 PM

Will this cap keep stuff out of my hydraulic lines?

Answer by: Customer Support on Sep 5, 2025, 6:32 PM

This cap is designed to provide a secure and tight fit on M20 X 1.5 threaded connections, preventing ingress of contaminants into your hydraulic system.
