Female Din Soft Seal Union

Description & Features

Constructed from steel in a straight configuration, this union features identical M14 x 1.5 DIN tube connections on both ends, with female gender on each side. The Female Din Soft Seal Union is designed for symmetrical inline joining of DIN tube lines, making it well suited for hydraulic circuits where a reliable, leak-resistant connection is required at a standardized metric thread size.

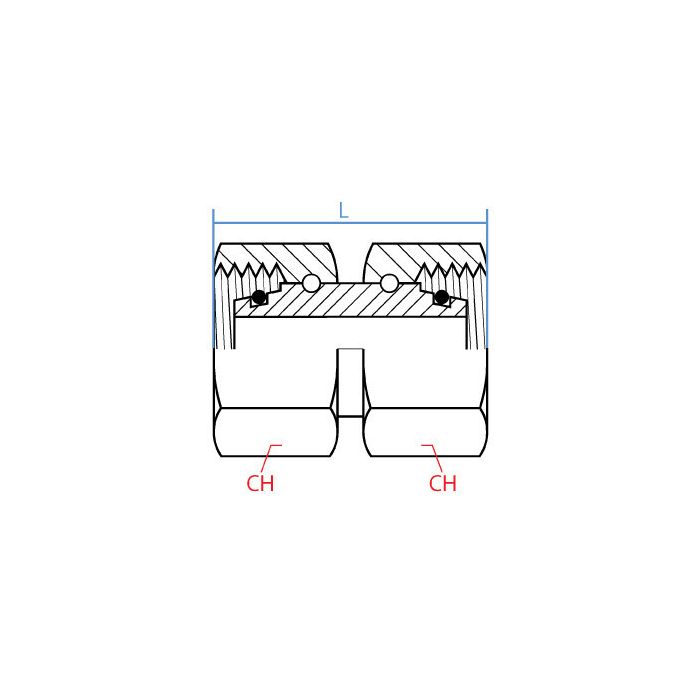

With an overall length of 38.9mm and wrench flats of 17mm and 12mm, the fitting is compact and practical for installations where space is a consideration. The soft seal design provides a reliable face seal at each connection point, reducing the risk of leakage under working pressures typical of hydraulic systems using DIN tube fittings.

Manufactured by Adaptall, this fitting conforms to DIN tube fitting standards and is compatible with L08 tube sizing on both sides.

SKU: 5300L-08

Supplier Part Number (MPN): 5300L-08

Specifications

CH1 Width 17mm	CH2 Width 12mm	L Length 38.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender F	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300L-08	Product Weight 0.12 lbs

Product Questions & Answers (1)

Question by: Troy F on Nov 16, 2025, 8:25 PM

Will this union fit right on my L08 DIN tube lines without any trouble?

Answer by: Customer Support on Nov 18, 2025, 6:45 AM

This fitting is designed for symmetrical inline joining of DIN tube lines, so it should fit your L08 tube sizing on both sides without issue. Just make sure the M14 x 1.5 threads match up.
