Female Din Soft Seal Union

Description & Features

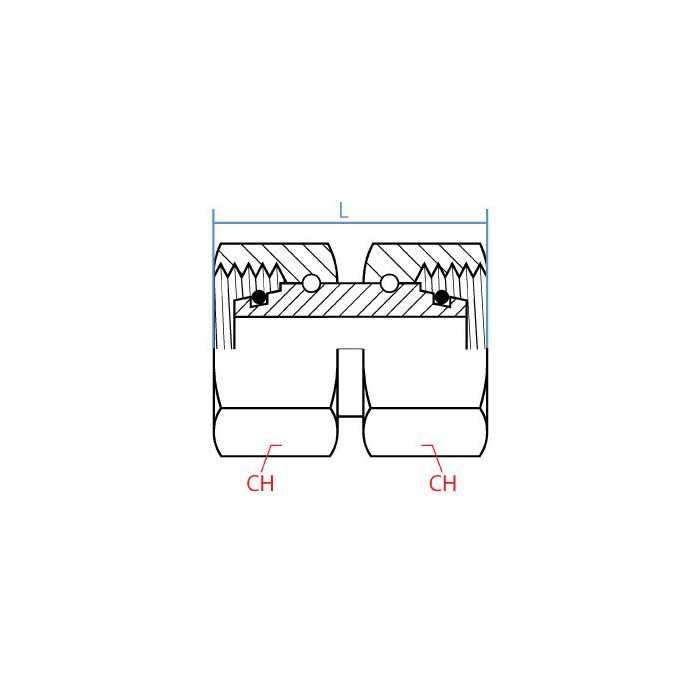

Engineered for reliable performance, the Female Din Soft Seal Union is designed to meet the demands of industrial hydraulic systems. Constructed from durable steel, this union ensures robust connections with its straight design, suitable for various applications. The union features M26 x 1.5 thread size on both sides, accommodating L18 size Din tubes. Its compact design, with a length of 50mm and channel widths of 32mm and 27mm, offers ease of installation in tight spaces.

Manufactured by Adaptall, this Female Din Soft Seal Union is an ideal choice for maintaining secure, leak-free connections in high-pressure environments. Its female-to-female configuration facilitates straightforward integration into existing systems, ensuring compatibility and flexibility in diverse industrial setups.

SKU: 5300L-18

Supplier Part Number (MPN): 5300L-18

Specifications

CH1 Width 32mm	CH2 Width 27mm	L Length 50mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender F	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender F	Side 2 Size L18	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300L-18	Product Weight 0.48 lbs

Product Questions & Answers (1)

Question by: Todd J on Nov 21, 2025, 3:46 PM

got a straight run with DIN tube ends, will this union tie two L18 lines together or am i mixing stuff up

Answer by: Customer Support on Nov 23, 2025, 1:17 PM

For a straight female to female DIN tube connection, it matches L18 on both sides with M26 x 1.5 threads. It is meant to join two DIN tube ends of that same size in a straight line.
