Female Din Soft Seal Union

Description & Features

Engineered for precision and durability, the Female Din Soft Seal Union is crafted from robust steel, ensuring reliable performance in demanding industrial applications. With a straight design, it features dual M18 x 1.5 DIN tube connections, facilitating seamless integration into your hydraulic systems. The union’s adaptable design includes female connections on both ends, sized at S10, making it ideal for versatile configuration needs.

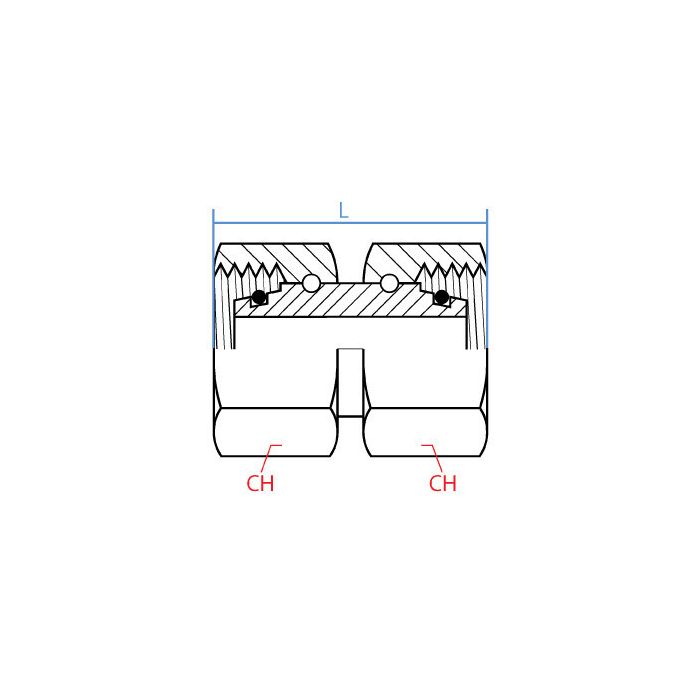

This high-quality component is characterized by its compact dimensions, with a length of 38mm and channel widths of 22mm and 16mm, ensuring a snug fit in tight spaces. Manufactured by Adaptall, known for their excellence in industrial fittings, this union is a dependable choice for maintaining system integrity and efficiency.

SKU: 5300S-10

Supplier Part Number (MPN): 5300S-10

Specifications

CH1 Width 22mm	CH2 Width 16mm	L Length 38mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size S10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300S-10	Product Weight 0.18 lbs

Product Questions & Answers (3)

Question by: Dustin T on Jun 18, 2025, 1:22 PM

both ends are M18 x 1.5 DIN tube connections, right? just want to make sure before i order a couple of these for a retrofit job

Answer by: Customer Support on Jun 20, 2025, 6:02 AM

Correct on both counts. Each side of this union is an M18 x 1.5 DIN tube connection, female gender, sized at S10. So you're working with matching connections end to end, which makes it a straight-through union rather than an adapter between two different thread types. For a retrofit where both sides of your line are already DIN tube fittings at that size, this should drop right in without any conversion needed.

Question by: Hank S on Jan 19, 2026, 7:02 AM

What kinda steel is this union made from?

Answer by: Customer Support on Jan 20, 2026, 9:51 PM

Crafted from robust steel, this union is designed for reliable performance in demanding industrial applications.

Question by: Rusty C on Sep 24, 2025, 5:29 PM

got a tight spot on a hydraulic run, how long is this union end to end?

Answer by: Customer Support on Sep 26, 2025, 6:54 AM

At 38mm long overall, it stays pretty compact, and it uses 22mm and 16mm wrench flats (Ch1 and Ch2) for tightening.
