Female Din Soft Seal Union

Description & Features

Designed by Adaptall America this precision-built fitting is crafted for technical applications demanding reliable sealing. Constructed from steel it features dimensions of M24 x 1.5 on both F-sides ensuring strong compatibility with S16 Din tube connections.

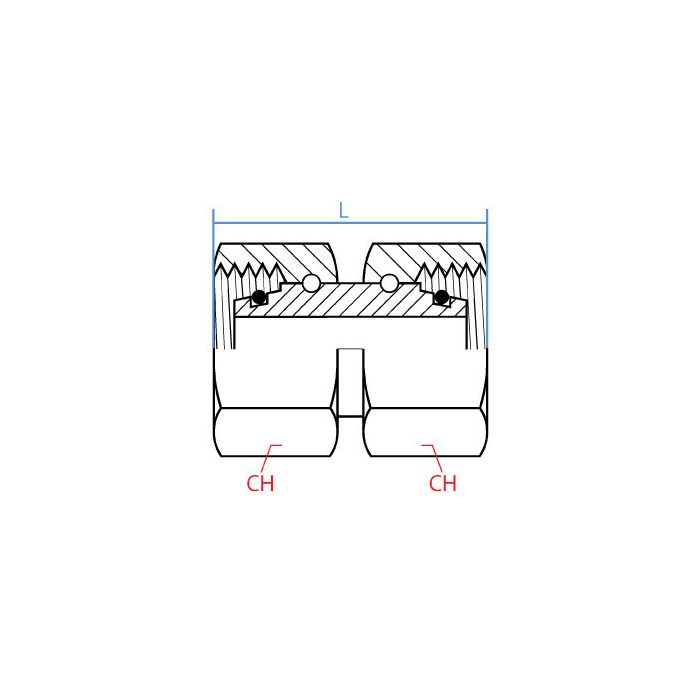

Measuring 50.5mm in overall length it provides an optimal fit in various configurations. The union's CH1 and CH2 widths are 30mm and 24mm respectively allowing for effective utilization in diverse setups.

This specialized component does not include adjustable ends or check valves highlighting its particular use in specific technical installations.

Supplier Part Number: 5300S-16

Specifications

CH1 Width 30mm	CH2 Width 24mm	L Length 50.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender F	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number 5300S-016	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300S-16	Product Weight 0.38 lbs

Product Questions & Answers (3)

Question by: Hank B on May 12, 2025, 2:45 PM

So, this here is just a straight union, right? No adjustable ends or anything fancy?

Answer by: Customer Support on May 14, 2025, 1:30 PM

That's correct. This is a straight, steel Female Din Soft Seal Union with no adjustable ends or check valves. It's designed for installations needing a reliable, direct connection.

Question by: Melvin R on Dec 21, 2025, 11:20 AM

got a DIN tube setup with S16 ends, is this union the right thread size on both sides?

Answer by: Customer Support on Dec 22, 2025, 1:02 PM

For a straight DIN tube union with S16 connections, both ends on this one are female M24 x 1.5, so it matches an S16 DIN tube thread on each side.

Question by: Kirk M on Jul 22, 2025, 6:41 PM

Got a busted union on a DIN tube line running M24 x 1.5 fittings, this the right part to swap it out with?

Answer by: Customer Support on Jul 24, 2025, 6:20 AM

Yeah, that's the one. Both ends on this union are M24 x 1.5 female DIN tube connections sized at S16, so if your existing line runs those specs, this'll drop right in. It's a straight union with no adjustable ends, so as long as your setup doesn't need any angularity or repositioning at the joint, you're looking at a solid match.
