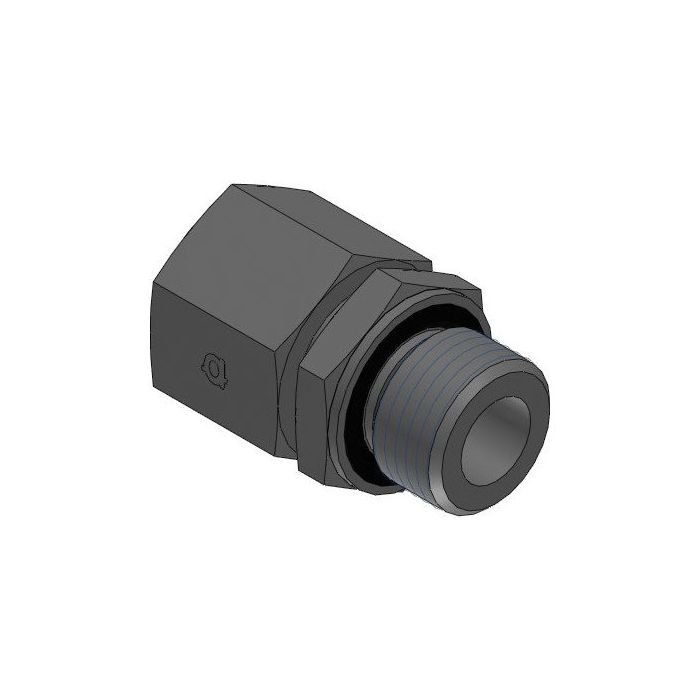

main product photo

F Din X Mbspp Es Seal

Ask A Question

Description & Features

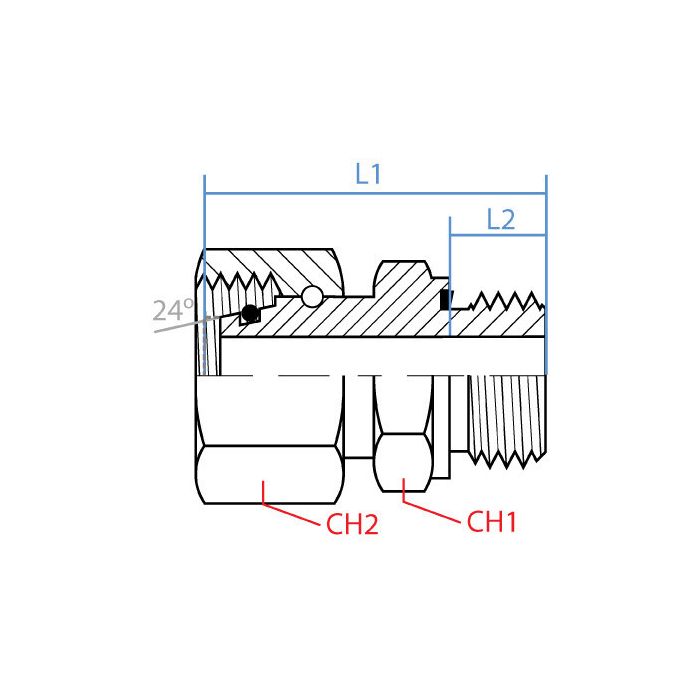

Designed for demanding industrial environments, this high-quality steel adapter provides reliable connections in hydraulic systems. The F Din X Mbspp Es Seal features a straight shape with precise thread specifications, including a female M14 x 1.5 DIN tube on Side 1 and a male G 1/4 - 19 BSPP on Side 2. This ensures compatibility with a variety of equipment and applications where secure and leak-proof connections are vital.

Measuring 41.5mm in length, with channel widths of 19mm and 17mm, this adapter is engineered to meet stringent industrial standards. Manufactured by Adaptall, a leader in hydraulic components, it promises durability and performance reliability. The adapter's robust construction makes it an ideal choice for integrating into existing systems or for new setups requiring consistent and efficient fluid transfer.

SKU: 5302L-08-04

Supplier Part Number (MPN): 5302L-08-04

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
34.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
17 x 19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (3)

Question by: Roger B on Aug 18, 2025, 6:36 PM
I need somethin' that'll hold up in a hydraulic setup. Is this adapter pretty tough?
Answer by: Customer Support on Aug 20, 2025, 10:58 AM
Yes, this adapter is manufactured by Adaptall and is constructed from steel, so it's designed to be durable in demanding industrial environments.
Question by: Hubert S on Apr 27, 2025, 1:22 PM
what's the thread setup on both ends of this adapter? trying to figure out if it'll work with what I already got on the machine
Answer by: Customer Support on Apr 28, 2025, 5:26 PM
Side 1 is a female M14 x 1.5 DIN tube connection and Side 2 is a male G 1/4 - 19 BSPP. So if you've got a DIN tube fitting on one end and a BSPP port on the other, this adapter bridges those two together in a straight configuration. The overall length runs 41.5mm, with channel widths of 19mm on the DIN side and 17mm on the BSPP side.
Question by: Roger P on May 30, 2025, 6:27 PM
got a hose end with female M14 x 1.5 DIN tube, will this adapter mate up to a male G 1/4-19 BSPP port?
Answer by: Customer Support on Jun 1, 2025, 6:26 AM
For connecting those two thread styles, it’s a straight steel adapter with a female M14 x 1.5 DIN tube end on Side 1 and a male G 1/4 - 19 BSPP end on Side 2, made for a secure, leak-resistant connection.
