F Din X Mbspp Es Seal

Ask A Question

Description & Features

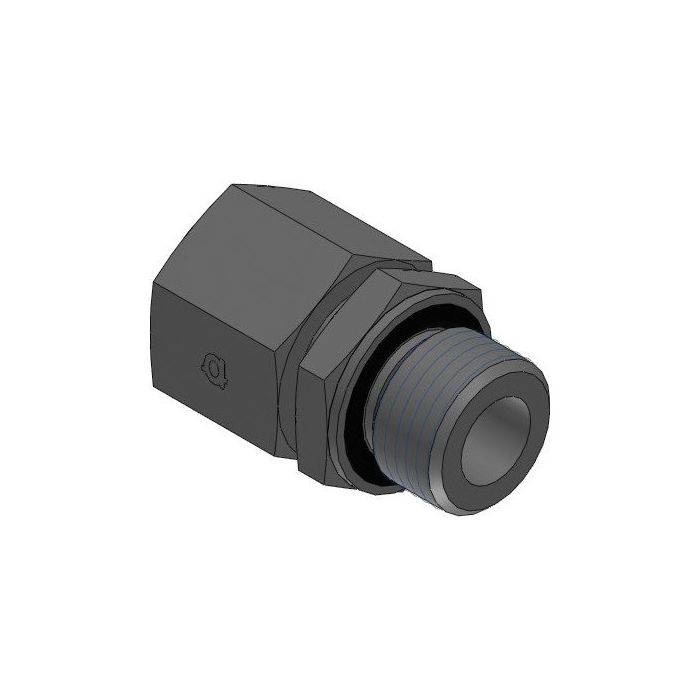

This straight steel Adaptall fitting features a female DIN tube connection on one side and a male BSPP connection on the other. The F Din X Mbspp Es Seal side 1 has a M16 X 1.5 callout and a L10 size. The side 2 has a G 1/4 - 19 callout and 1/4" size.

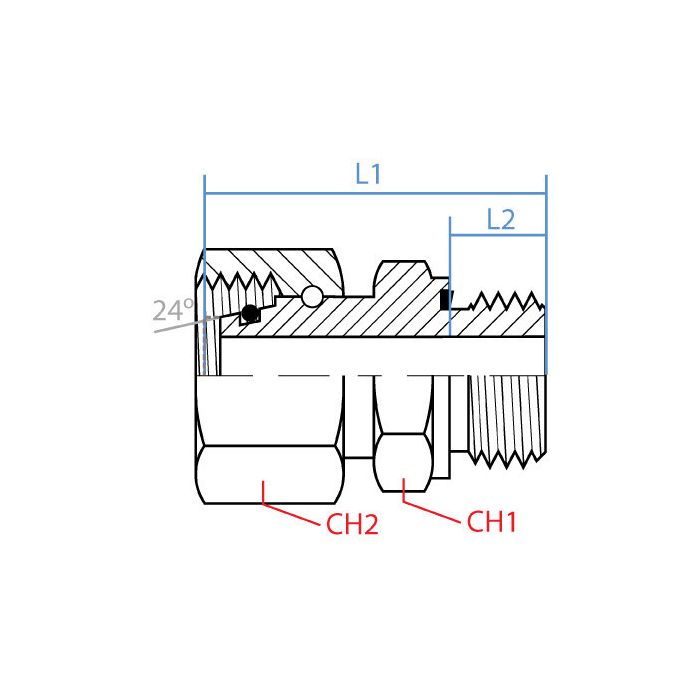

The Adaptall Ch1 and Ch2 width are both 19mm. The Adaptall L1 Length is 39.5mm and the Adaptall L2 Length is 12mm.

SKU: 5302L-10-04

Supplier Part Number (MPN): 5302L-10-04

Specifications

Brand
adapt-all
Connection Size 2
1/4 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
39.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M16x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Vince W on Dec 12, 2025, 1:00 PM
trying to hook a DIN tube line to a 1/4 BSPP port, is this the right adapter?
Answer by: Customer Support on Dec 14, 2025, 6:15 AM
For that kind of hookup, this fitting is a straight steel Adaptall adapter with a female DIN tube connection on one end and a male BSPP on the other. Side 1 is M16 x 1.5 (DIN tube, size L10) and side 2 is G 1/4 - 19 (BSPP, 1/4 inch).
