F Din X Mbspp Es Seal

Description & Features

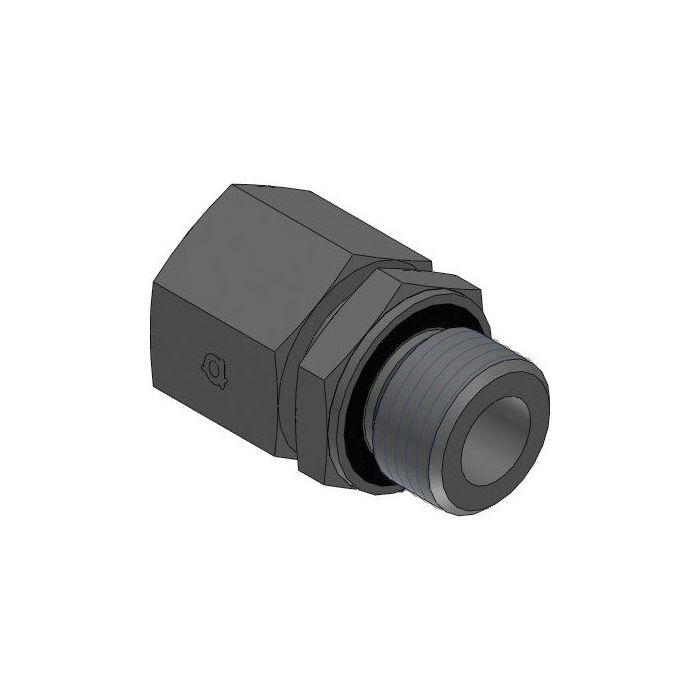

Straight steel hydraulic adapter connecting a female DIN tube port (M18 x 1.5 thread) on one end to a male BSPP port (G 1/4 - 19) on the other. The F Din X Mbspp Es Seal is manufactured by Adaptall and features an elastomeric seal (ES) design, making it suited for hydraulic line connections where a reliable face seal is required at the DIN end.

Built in a straight configuration from steel, this adapter measures 39.5mm in overall length with a 12mm body length, and wrench flats of 19mm and 22mm across each respective end. The 1/4" BSPP male side allows connection into standard British Standard Parallel Pipe fittings, while the L12 female DIN tube end accommodates M18 x 1.5 metric tube connections commonly found in European hydraulic systems.

SKU: 5302L-12-04

Supplier Part Number (MPN): 5302L-12-04

Specifications

CH1 Width 19mm	CH2 Width 22mm	L1 Length 39.5mm	L2 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302L-12-04	Product Weight 0.15 lbs

Product Questions & Answers (2)

Question by: Vince R on Aug 20, 2025, 1:25 PM

Got a European machine here with M18 x 1.5 metric tube fittings and need to tie into a 1/4 inch BSPP port on some newer equipment. this adapter gonna bridge that gap straight across?

Answer by: Customer Support on Aug 21, 2025, 2:16 PM

That's exactly the crossover this fitting handles. One end is a female DIN tube port sized for M18 x 1.5 metric connections, which is your L12 tube size, and the other end is a 1/4 inch male BSPP thread conforming to the G 1/4 - 19 standard. The configuration is straight, so there's no angle change in the line. Steel construction throughout, and the elastomeric seal on the DIN end gives you a face seal at that connection rather than relying on thread engagement alone to hold pressure. If both ports on your equipment match those specs, this adapter fits the bill.

Question by: Patty W on Jul 20, 2025, 6:26 AM

trying to hook an M18 x 1.5 DIN tube port up to a 1/4 BSPP male, is that what this adapter does?

Answer by: Customer Support on Jul 22, 2025, 6:42 AM

On a practical level, it is a straight steel adapter that goes from a female DIN tube port (M18 x 1.5, L12) on one end to a male BSPP port (G 1/4 - 19) on the other.
