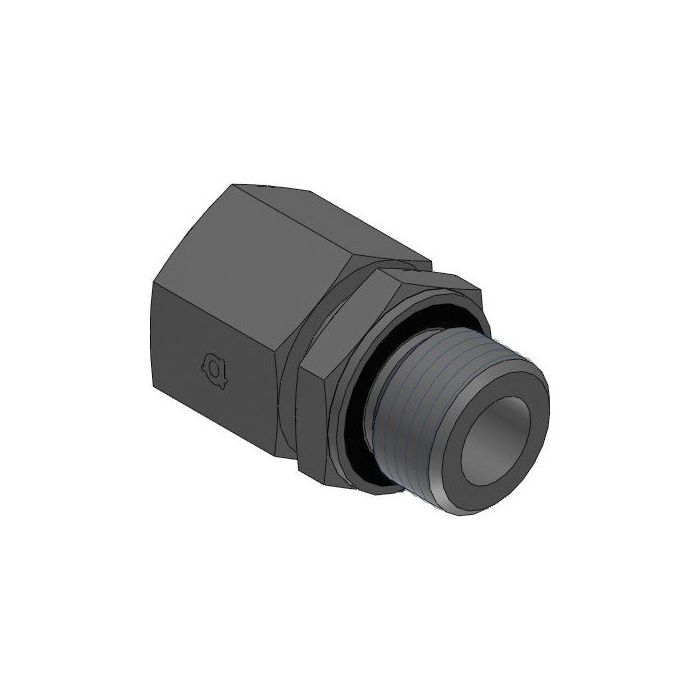

main product photo

F Din X Mbspp Es Seal

Ask A Question

Description & Features

Constructed from durable steel, this hydraulic fitting offers a reliable connection for industrial applications. It features a straight design with a female DIN tube connection on one side (M18 x 1.5) and a male BSPP connection on the other side (G 3/8 - 19). With a consistent width of 22mm on both ends, this fitting is engineered for precision fitting and high performance in demanding environments.

The F Din X Mbspp Es Seal ensures a secure and leak-free seal, making it ideal for use in high-pressure hydraulic systems. Its compact dimensions include a length of 46mm and an L2 length of 12mm, allowing for easy integration into existing hydraulic setups. As part of the Adaptall brand, this fitting is synonymous with quality and compatibility in industrial settings.

SKU: 5302L-12-06

Supplier Part Number (MPN): 5302L-12-06

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
3/8 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
46 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M18x1.5 x 3/8-19

Product Questions & Answers (2)

Question by: Tammy R on May 9, 2025, 1:57 PM
got a hose end that’s female DIN M18 x 1.5. is this the right adapter to go over to a 3/8 BSPP male?
Answer by: Customer Support on May 11, 2025, 6:27 AM
For a DIN tube female M18 x 1.5 on one side and a male BSPP G 3/8 - 19 on the other, this straight steel fitting matches those thread callouts. Side 1 is female DIN tube (M18 x 1.5, L12) and side 2 is male BSPP (G 3/8 - 19, 3/8).
Question by: Peggy P on Apr 25, 2025, 2:55 PM
got a system running BSPP on one end and DIN tube fittings on the other, this the right piece to bridge that gap?
Answer by: Customer Support on Apr 27, 2025, 6:07 AM
That's exactly what this fitting handles. One side is a female DIN tube connection at M18 x 1.5, and the other is a male BSPP at G 3/8 - 19. Both ends measure 22mm across, and the overall length is 46mm, so it's a compact adapter that ties those two thread standards together without a bunch of extra hardware in between.
