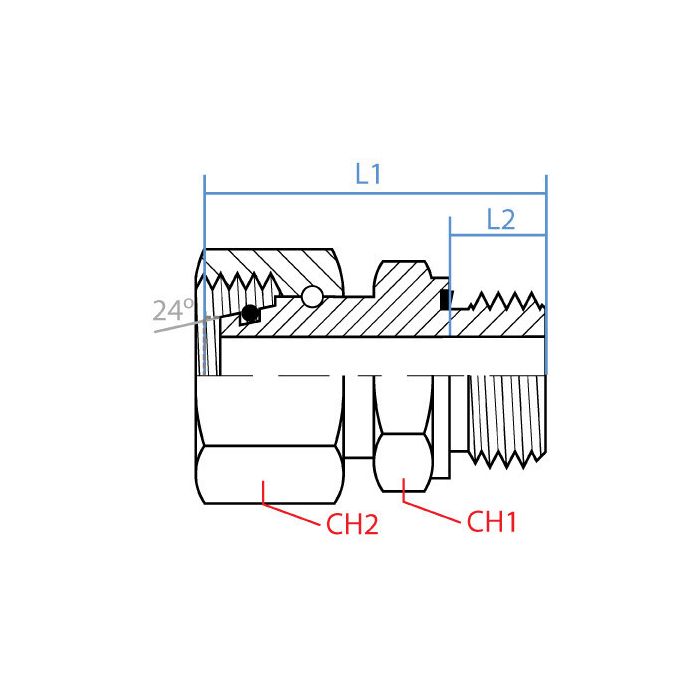

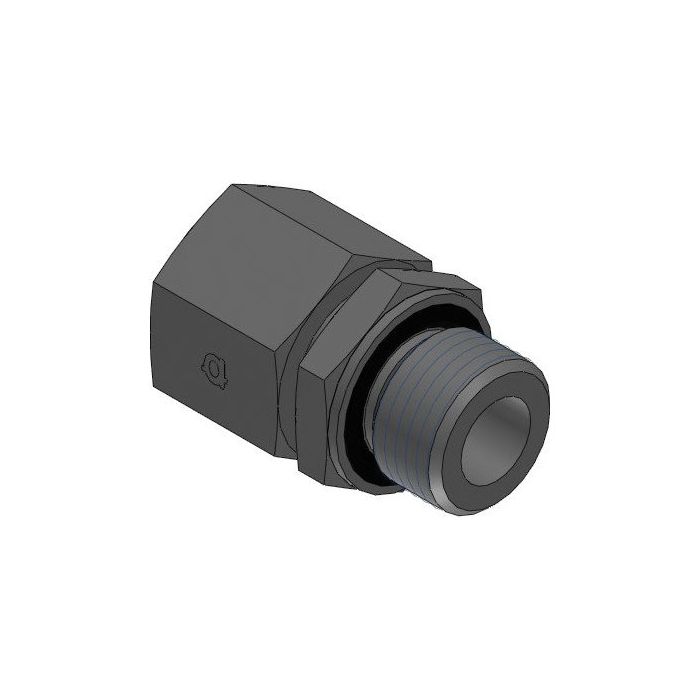

main product photo

F Din X Mbspp Es Seal

Ask A Question

Description & Features

Designed for robust industrial applications, this Adaptall steel fitting offers a seamless connection between metric DIN tube and British Standard Pipe Parallel (BSPP) threads. With a sturdy construction, the fitting features a female M30 x 2.0 DIN tube connection on one side and a male G 3/4-14 BSPP thread on the opposite side. This straight connector is engineered for use in demanding environments where reliability and precision are critical.

The F Din X Mbspp Es Seal fitting measures 48.5mm in length, ensuring a compact design that doesn't compromise on performance. Its durable steel material provides excellent resistance to wear and tear, making it suitable for heavy-duty use. With widths of 32mm and 36mm at its connection points, this fitting promises secure and leak-free use in your hydraulic systems.

SKU: 5302L-22-12

Supplier Part Number (MPN): 5302L-22-12

Specifications

Brand
adapt-all
Connection Size 1
L22
Connection Size 2
3/4 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
48.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm, 36 mm
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M30x2 x 3/4-14

Product Questions & Answers (2)

Question by: Ross F on May 23, 2025, 3:08 PM
Will this fitting hold up okay in a hydraulic system that sees pretty consistent use?
Answer by: Customer Support on May 25, 2025, 8:05 AM
With its durable steel construction, this Adaptall fitting is well-suited for heavy-duty use and should provide excellent resistance to wear and tear in demanding hydraulic systems.
Question by: Wayne M on Apr 9, 2025, 9:49 PM
fitting's got a female M30 x 2.0 on one end and I need to tie into a 3/4 BSPP male port on my equipment, this the right one to do that?
Answer by: Customer Support on Apr 11, 2025, 11:44 AM
That's exactly what this fitting does. One side is a female DIN tube connection sized M30 x 2.0, and the other side is a male G 3/4-14 BSPP thread. As long as your tube and port match those specs, this straight adapter will bridge the two without any modification needed.
