F Din X Mbspp Es Seal

Ask A Question

Description & Features

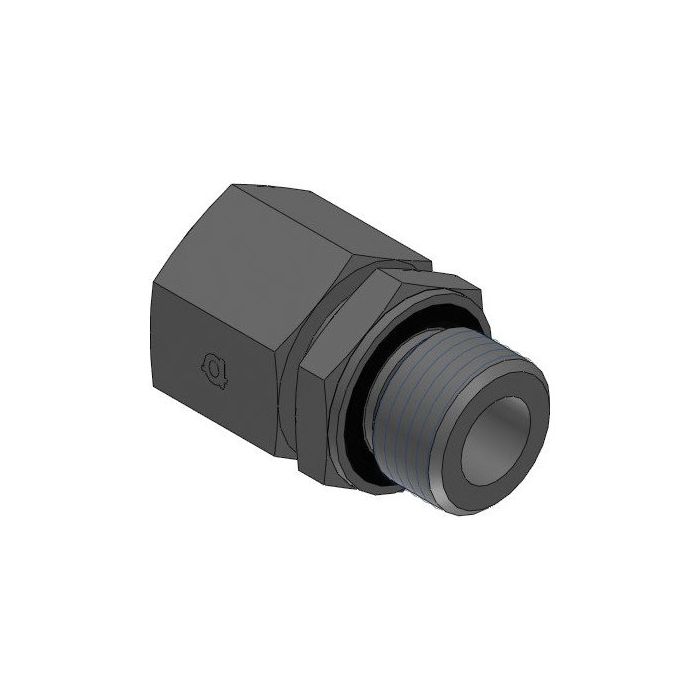

This straight Adaptall fitting features a female DIN tube on one side and a male BSPP end with an ES seal on the other. The side 1 DIN tube connection measures M36 x 2.0 and size L28, while side 2 BSPP connection is G 1 - 11 and 1" in size.

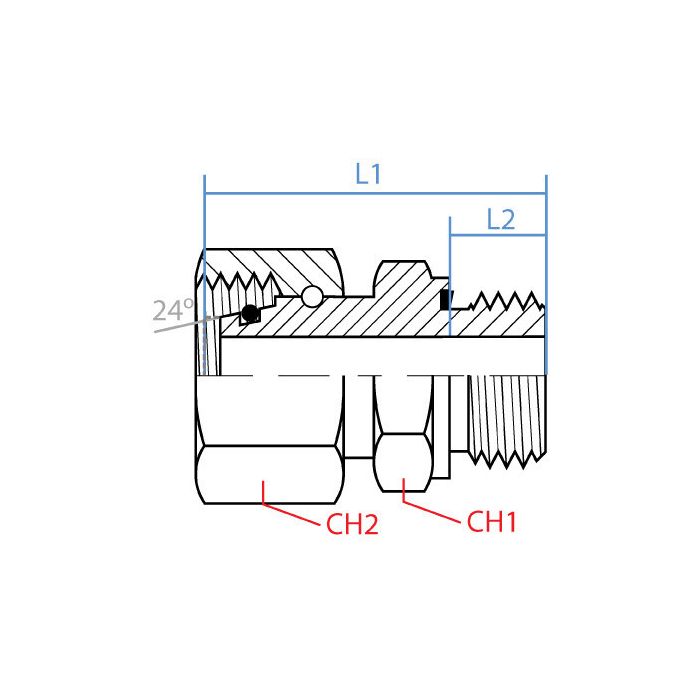

This F Din X Mbspp Es Seal is constructed from steel, offering durability and reliability in demanding hydraulic applications. It has a Ch1 width of 41mm and a Ch2 width of 46mm. Its L1 length is 53mm, and L2 length is 18mm.

SKU: 5302L-28-16

Supplier Part Number (MPN): 5302L-28-16

Specifications

Brand
adapt-all
Connection Size 1
L28
Connection Size 2
1 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
53 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm, 46 mm
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M36x2 x 1-11

Product Questions & Answers (2)

Question by: Wade P on Aug 10, 2025, 11:45 AM
got a tube nut that’s M36 x 2.0 on the DIN side, is this the right straight adapter to get over to a 1 inch BSPP male?
Answer by: Customer Support on Aug 12, 2025, 7:47 AM
Match it up by the thread callouts. Side 1 is a female DIN tube connection marked M36 x 2.0 with size L28, and side 2 is a male BSPP marked G 1 - 11 in a 1 inch size. It is a straight steel Adaptall fitting with an ES seal on the BSPP end.
Question by: Vince S on Oct 28, 2025, 5:01 PM
What kind of hydraulic applications is this steel fitting good for?
Answer by: Customer Support on Oct 30, 2025, 6:09 AM
This fitting is constructed from steel, offering durability and reliability in demanding hydraulic applications.
