main product photo

F Din X Mbspp Es Seal

Ask A Question

Description & Features

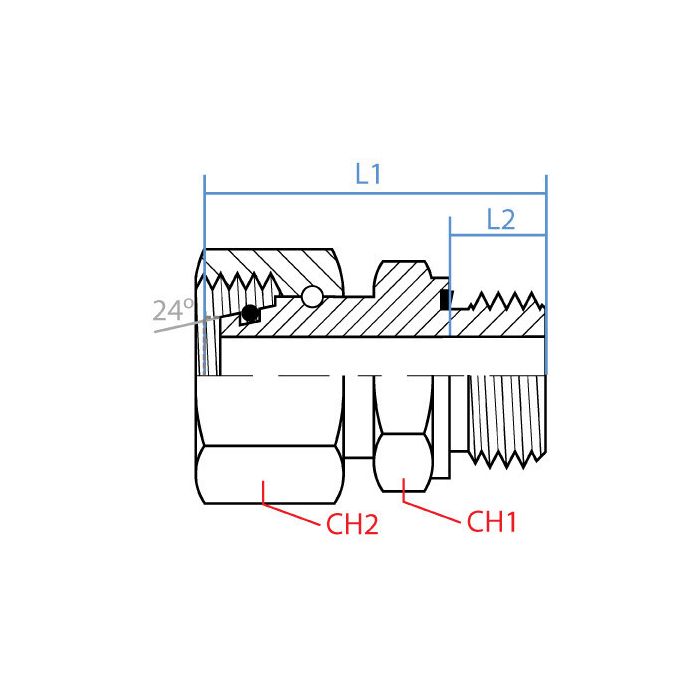

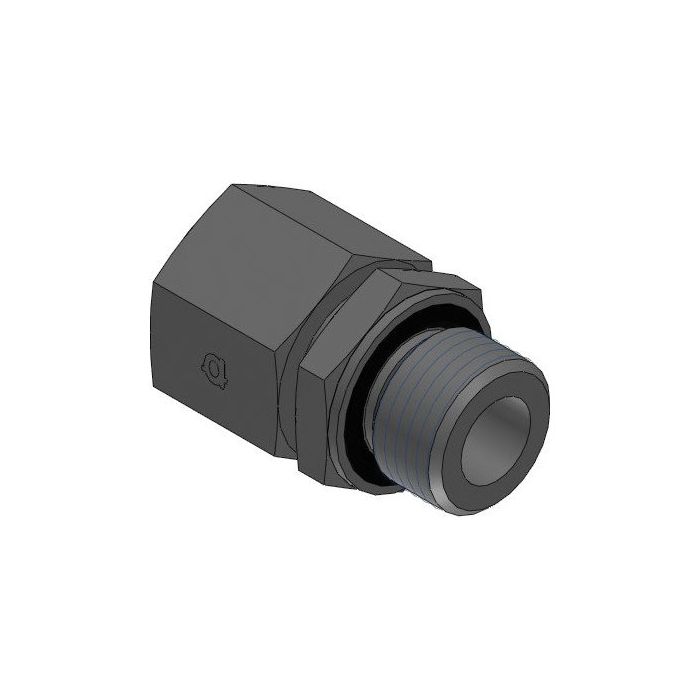

Manufactured from steel in a straight configuration, this Adaptall adapter connects a female DIN tube end (M45 x 2.0 thread, L35 series) to a male BSPP port (G 1-1/4 - 11 thread) with an ES face seal. The straight body measures 62.5mm in overall length, with a 20mm L2 length and 50mm wrench flats on both ends, making it straightforward to install and torque correctly in confined hydraulic assemblies.

The F Din X Mbspp Es Seal is suited for hydraulic systems requiring a reliable transition between DIN tube connections and BSPP threaded ports. The ES seal design provides a metal-face seal interface on the DIN side, helping to minimize leakage risk at the connection point. This adapter is part of the Adaptall interchangeable fitting system, which allows for flexible assembly across a wide range of hydraulic circuit configurations.

SKU: 5302L-35-20

Supplier Part Number (MPN): 5302L-35-20

Specifications

Brand
adapt-all
Connection Size 2
1-1/4 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
62.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M45x2 x 1-1/4-11

Product Questions & Answers (3)

Question by: Ricky E on Apr 28, 2025, 6:04 PM
Got a BSPP port that's 1-1/4 inch on the equipment side and need to tie in a DIN tube connection, this the right adapter for that?
Answer by: Customer Support on Apr 30, 2025, 11:02 AM
That's exactly the application this one covers. The male end is a G 1-1/4 - 11 BSPP thread, so it threads into a 1-1/4 inch BSPP port on your equipment. The female DIN side accepts an M45 x 2.0 tube end in the L35 series. The ES face seal on the DIN side gives you a metal-face interface at that connection point, which keeps leakage risk low when everything is torqued down properly.
Question by: Diane P on Feb 6, 2026, 1:56 PM
got a DIN tube end that’s M45 x 2.0 (L35). is this the piece that’ll get me over to a G 1-1/4 - 11 BSPP port?
Answer by: Customer Support on Feb 8, 2026, 6:49 AM
For tying those two standards together, this adapter is a straight steel fitting with a female DIN tube end on one side (M45 x 2.0, L35 series) and a male BSPP on the other (G 1-1/4 - 11, 1-1/4 inch). It’s meant for hydraulic setups where you need that DIN to BSPP transition.
Question by: Sherry P on Dec 22, 2025, 6:39 AM
Can this adapter handle high pressure in a hydraulic system, or is it more for lighter-duty stuff?
Answer by: Customer Support on Dec 24, 2025, 6:33 AM
This adapter is manufactured from steel, making it suitable for hydraulic systems where a reliable connection between DIN tube connections and BSPP threaded ports is needed. The ES seal design also helps minimize leakage risk at the connection point.
