F Din X Mbspp Es Seal

Ask A Question

Description & Features

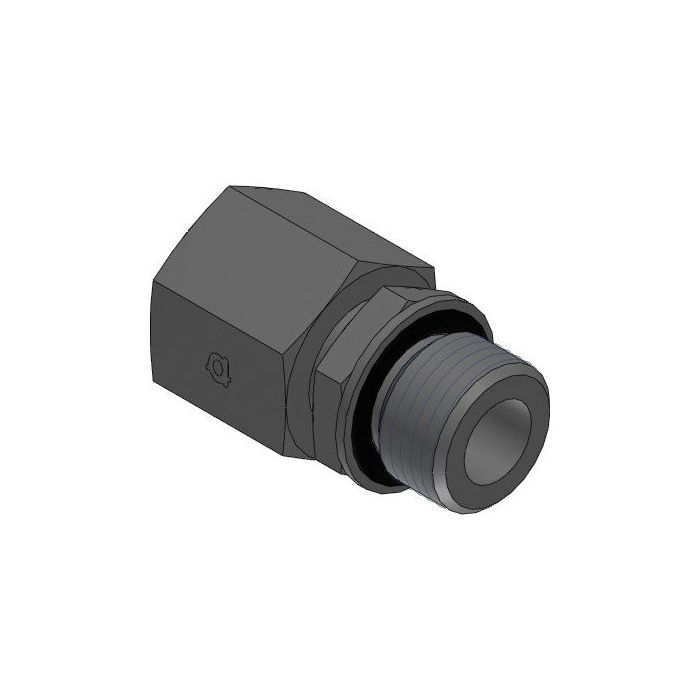

This straight Adaptall fitting features a female DIN tube end and a male BSPP end with an ES seal. The DIN end has a M14 X 1.5 thread and a S06 size, while the BSPP end measures 1/4" with a G 1/4 - 19 thread.

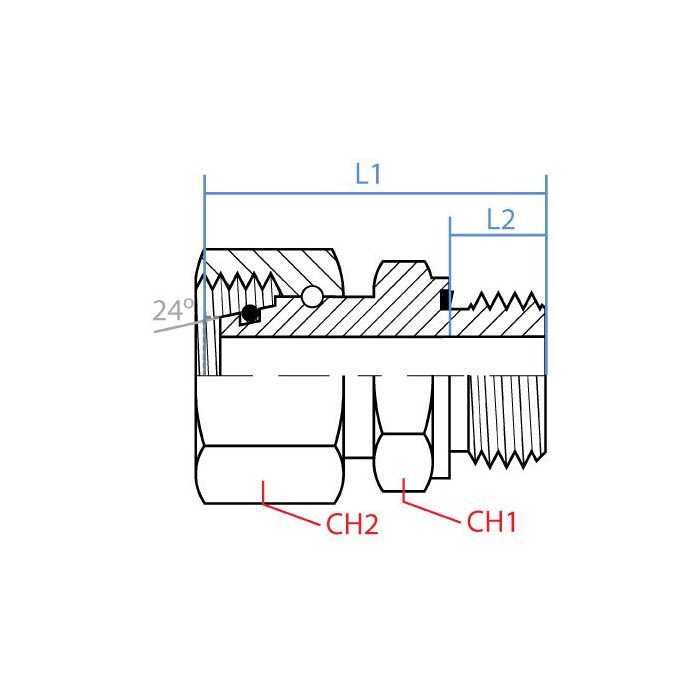

The F Din X Mbspp Es Seal is constructed from durable steel and has a Ch1 width of 19mm and a Ch2 width of 17mm. The L1 length is 39mm and the L2 length is 12mm.

SKU: 5302S-06-04

Supplier Part Number (MPN): 5302S-06-04

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
1/4 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
39 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
17 x 19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Peggy A on Mar 15, 2026, 11:00 AM
What's the deal with the different widths on this thing? I see a Ch1 and Ch2 width listed.
Answer by: Customer Support on Mar 17, 2026, 6:34 AM
Those widths refer to the wrench flats on each end of the fitting. The Ch1 side is 19mm wide, and the Ch2 side is 17mm. Makes it easier to tighten things down, you know?
