F Din X Mbspp Es Seal

Ask A Question

Description & Features

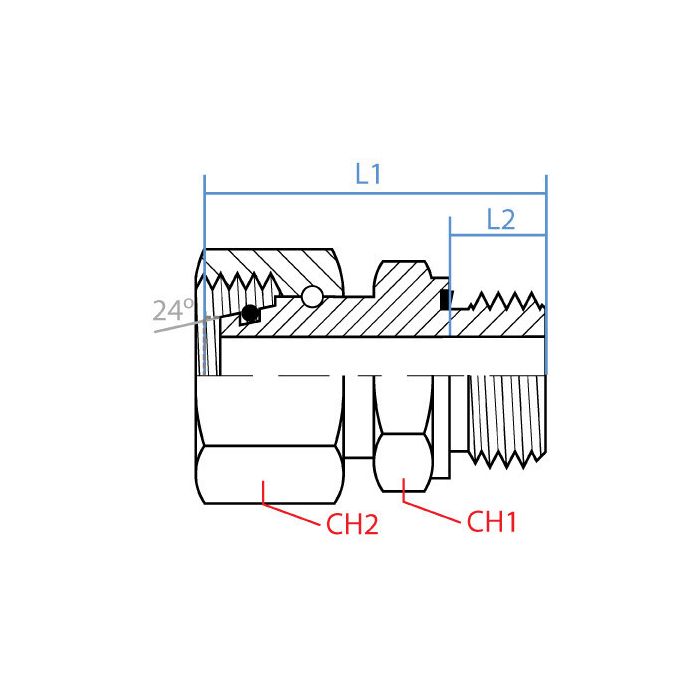

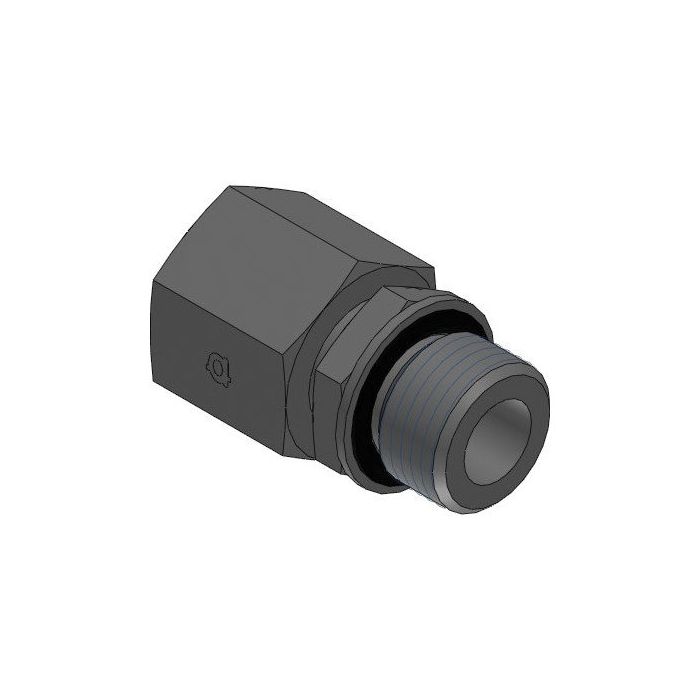

A straight steel adapter connecting a female DIN tube fitting (M16 x 1.5 thread) on one end to a male BSPP port (G 1/4 - 19) on the other, the F Din X Mbspp Es Seal is designed for hydraulic systems requiring a reliable transition between DIN and BSPP connection standards. The elastomeric seal (ES) configuration provides a secure, leak-resistant interface at the BSPP end.

Manufactured by Adaptall in steel, this straight adapter measures 41.5mm in overall length with a 12mm secondary length dimension. Both wrench flats are sized at 19mm, and the DIN side is rated for an S08 tube size. Suited for use in hydraulic circuits where DIN metric tube connections must interface with BSPP threaded ports, it is a practical cross-standard solution for fluid power assemblies.

SKU: 5302S-08-04

Supplier Part Number (MPN): 5302S-08-04

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
41.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M16x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Marvin F on Nov 16, 2025, 9:15 PM
trying to hook a DIN tube fitting into a BSPP port, is this the right adapter for that?
Answer by: Customer Support on Nov 18, 2025, 6:33 AM
For tying those two standards together, it’s a straight steel adapter with a female DIN tube end (M16 x 1.5, S08 tube size) and a male BSPP end (G 1/4 - 19). It’s meant for hydraulic setups where a DIN metric tube connection has to land in a BSPP threaded port.
