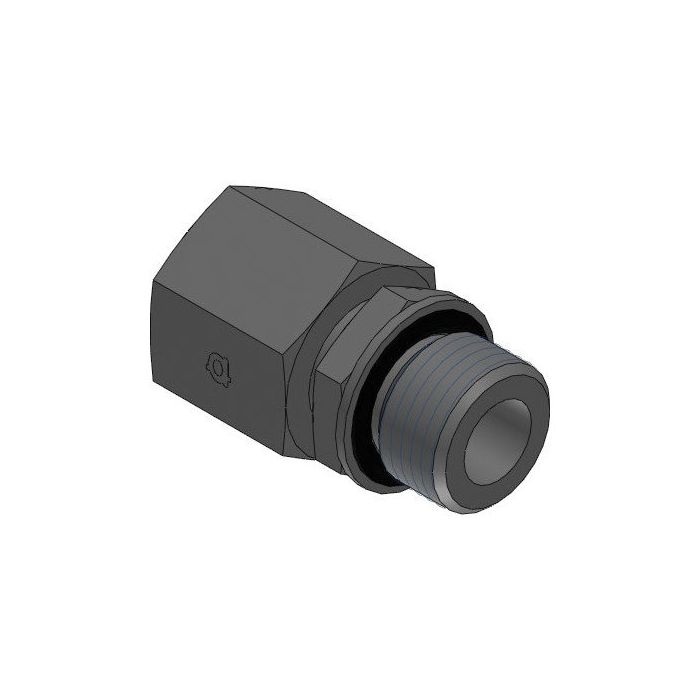

main product photo

F Din X Mbspp Es Seal

Ask A Question

Description & Features

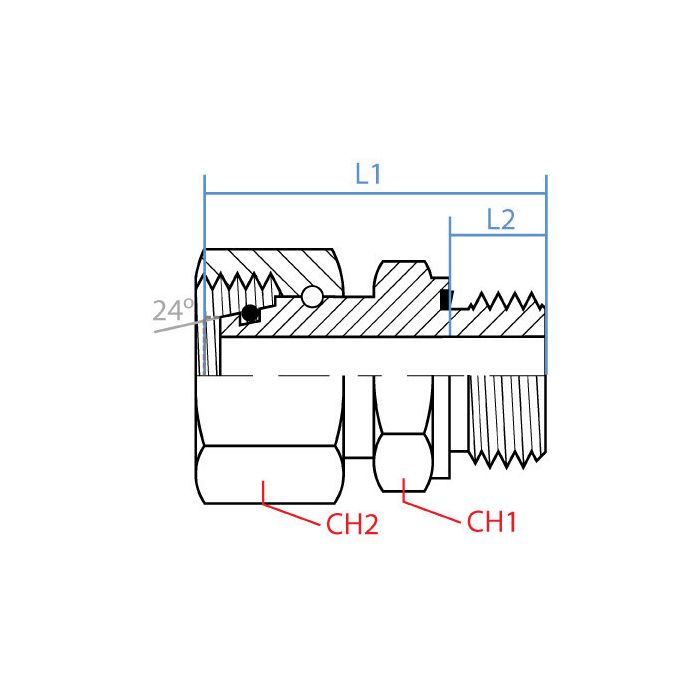

This hydraulic fitting combines precision and durability, featuring a robust steel construction ideal for demanding industrial environments. It offers a seamless connection with its M20 x 1.5 female DIN tube on one side and a G 1/2 - 14 male BSPP on the other, ensuring compatibility with various systems. The straight shape and compact design, with lengths of 48.5mm and 14mm, facilitate easy integration into existing setups.

With a width of 27mm on side one and 24mm on side two, this fitting is engineered for optimal performance and reliability. The use of high-quality steel enhances its longevity, making it a reliable choice for applications requiring robust and secure connections. The product name, F Din X Mbspp Es Seal, signifies its specialized sealing capabilities, ensuring leak-free operation under pressure.

SKU: 5302S-12-08

Supplier Part Number (MPN): 5302S-12-08

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
1/2 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
48.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M20x1.5 x 1/2-14

Product Questions & Answers (3)

Question by: Vince B on Jul 26, 2025, 8:40 AM
trying to hook a M20 x 1.5 DIN tube line up to a G 1/2 BSPP port. is this the right adapter?
Answer by: Customer Support on Jul 27, 2025, 9:40 AM
For that mix of ends, it matches up. Side 1 is a female DIN tube connection called out as M20 x 1.5 (S12), and side 2 is a male BSPP thread called out as G 1/2 - 14.
Question by: Peggy R on Aug 6, 2025, 8:57 PM
Got a system running M20 x 1.5 DIN tube fittings on one end and need to tie into a G 1/2 BSPP port on the other, this the right adapter for that?
Answer by: Customer Support on Aug 8, 2025, 6:03 PM
That's what this fitting is built for. One side is a female M20 x 1.5 DIN tube connection and the other is a male G 1/2 - 14 BSPP thread, so it bridges those two standards in a single straight body. Steel construction, 48.5mm overall length, and the ES seal designation means it's set up for leak-free operation under pressure.
Question by: Dwight P on Dec 13, 2025, 1:03 PM
Will this fitting hold up okay in a hydraulic system that runs pretty hot?
Answer by: Customer Support on Dec 15, 2025, 6:11 AM
The steel construction of this fitting should provide good durability in demanding industrial environments.
