F Din X Mbspp Es Seal

Description & Features

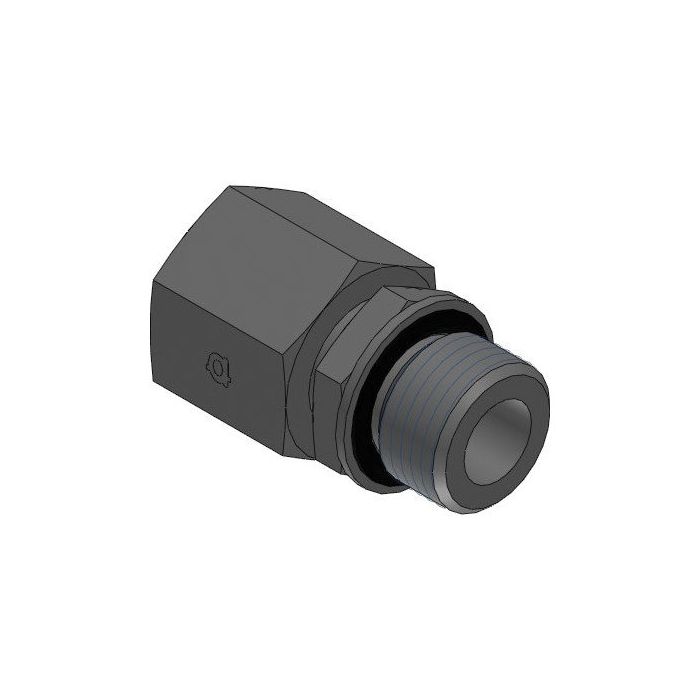

This straight steel adapter connects a female DIN tube fitting on one end to a male BSPP thread on the other, making it a practical solution for joining metric DIN tube lines to BSPP-ported components in hydraulic systems. The female DIN side carries an M24 x 1.5 thread in a size 16 configuration, while the male BSPP end is sized at G 1/2-14, providing a reliable cross-standard connection.

The F Din X Mbspp Es Seal is manufactured from steel and measures 51mm in overall length, with wrench flat widths of 27mm and 30mm on either end. The ES seal designation indicates an elastomeric seal design on the DIN side, contributing to a secure, leak-resistant connection. Supplied by Adaptall, this fitting suits industrial hydraulic circuits where DIN and BSPP thread standards intersect.

SKU: 5302S-16-08

Supplier Part Number (MPN): 5302S-16-08

Specifications

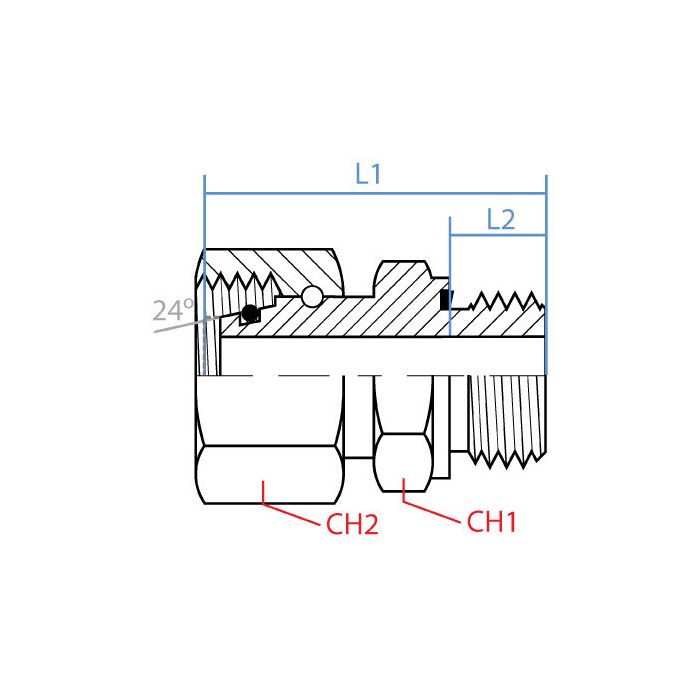

CH1 Width 27mm	CH2 Width 30mm	L1 Length 51mm	L2 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender F	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302S-16-08	Product Weight 0.42 lbs

Product Questions & Answers (2)

Question by: Dwayne M on Feb 22, 2026, 6:12 PM

Got a hydraulic line running metric DIN fittings that needs to tie into a BSPP-ported valve block. This adapter do that job straight out of the box?

Answer by: Customer Support on Feb 24, 2026, 6:08 AM

That's what it's built for. One end is a female DIN tube fitting sized at M24 x 1.5 in a size 16 configuration, and the other end is a male BSPP thread at G 1/2-14. So if your tube line is DIN S16 and your valve block has a 1/2 inch BSPP port, this fitting bridges those two standards directly with no extra pieces needed.

Question by: Norm M on Mar 4, 2026, 3:38 PM

What size wrench do I need for this thing?

Answer by: Customer Support on Mar 6, 2026, 9:59 AM

You'll need a 27mm wrench for one end and a 30mm wrench for the other.
