F Din X Mbspp Es Seal

Ask A Question

Description & Features

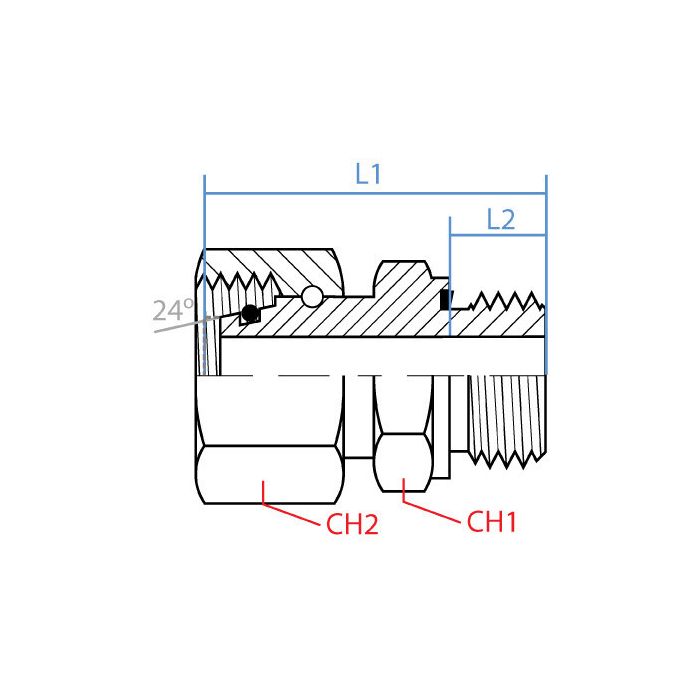

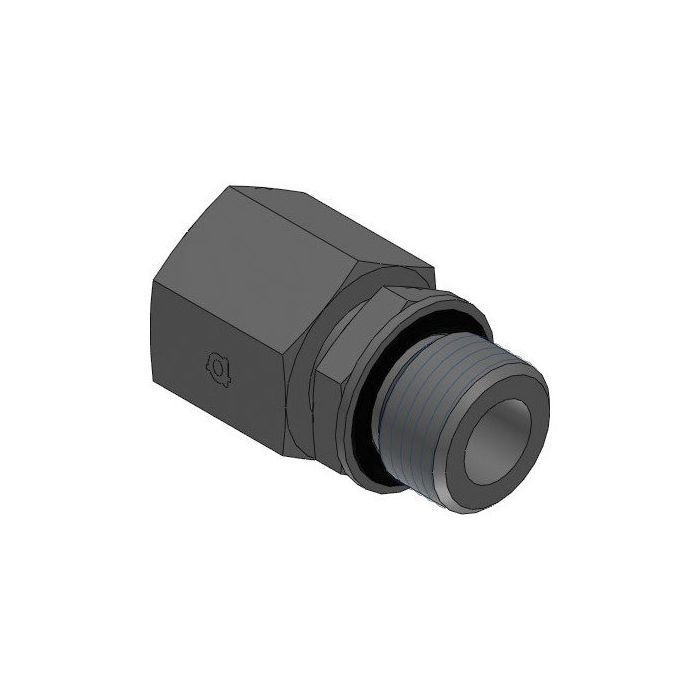

Designed for precise and reliable hydraulic connections, the F Din X Mbspp Es Seal is a straight adapter crafted from robust steel. Featuring a female M30 x 2.0 DIN tube connection on Side 1 and a male G 3/4 - 14 BSPP connection on Side 2, this component ensures secure and efficient linking of hydraulic systems. Its dimensions include a 32mm width on Side 1 and a 36mm width on Side 2, with an overall length of 59mm and a secondary length of 16mm, making it adaptable to various industrial applications.

Manufactured by Adaptall, a trusted name in hydraulic components, this adapter is engineered for durability and performance in demanding environments. The steel construction guarantees resistance to wear and tear, ensuring a long service life. Whether used in heavy machinery or specialized equipment, the F Din X Mbspp Es Seal offers reliable performance and a seamless fit.

SKU: 5302S-20-12

Supplier Part Number (MPN): 5302S-20-12

Specifications

Brand
adapt-all
Connection Size 1
20 mm
Connection Size 2
3/4 in
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353
Dimensions
59 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm, 36 mm
Material
Steel
Material Construction
Carbon Steel
Series
5302 Series
Thread Size
M30x2 x 3/4-14

Product Questions & Answers (2)

Question by: Lance C on Jun 28, 2025, 12:24 PM
Will this here adapter work to connect a M30 x 2.0 DIN tube to a G 3/4 - 14 BSPP?
Answer by: Customer Support on Jun 30, 2025, 6:45 AM
That's exactly what it's for. This F DIN X Mbspp Es Seal adapter is designed to connect those two hydraulic connections securely.
Question by: Rex B on Mar 23, 2026, 6:50 AM
Got a line running M30 x 2.0 DIN tube on one end and need to tie into a 3/4 BSPP male port on the other, this the right adapter for that?
Answer by: Customer Support on Mar 25, 2026, 6:26 AM
Yeah, that's exactly what this one's built for. Side 1 is a female M30 x 2.0 DIN tube connection and Side 2 is a male G 3/4-14 BSPP, so it bridges those two thread types in a straight configuration. Steel construction, 59mm overall length, made by Adaptall. If those specs match your line, it'll fit right in.
