F Din X Mbspp Es Seal

Description & Features

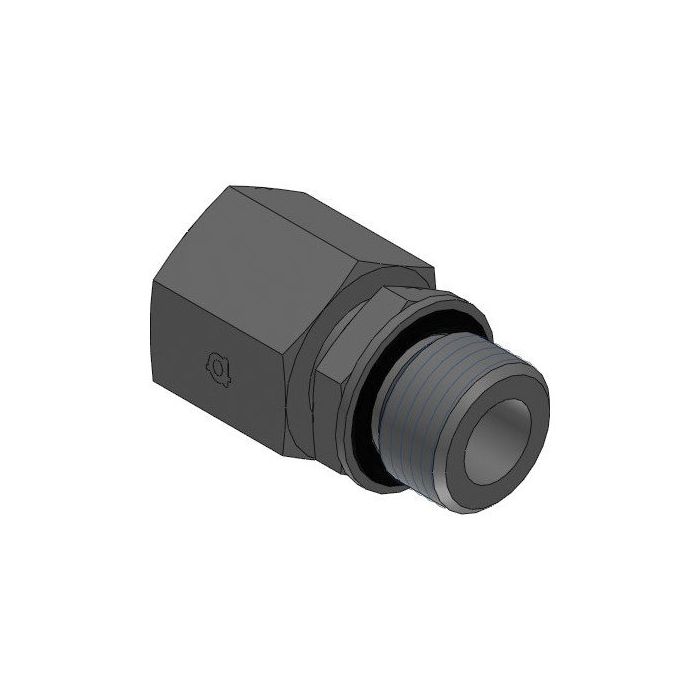

Constructed from durable steel, this adaptable fitting is designed for industrial systems requiring reliable connections. The F Din X Mbspp Es Seal features a straight shape and accommodates varied needs with its M52 X 2.0 female DIN tube connection on one side and a G 1-1/2 - 11 male BSPP connection on the other. Its robust build ensures dependable performance in demanding environments, making it a versatile component for hydraulic applications.

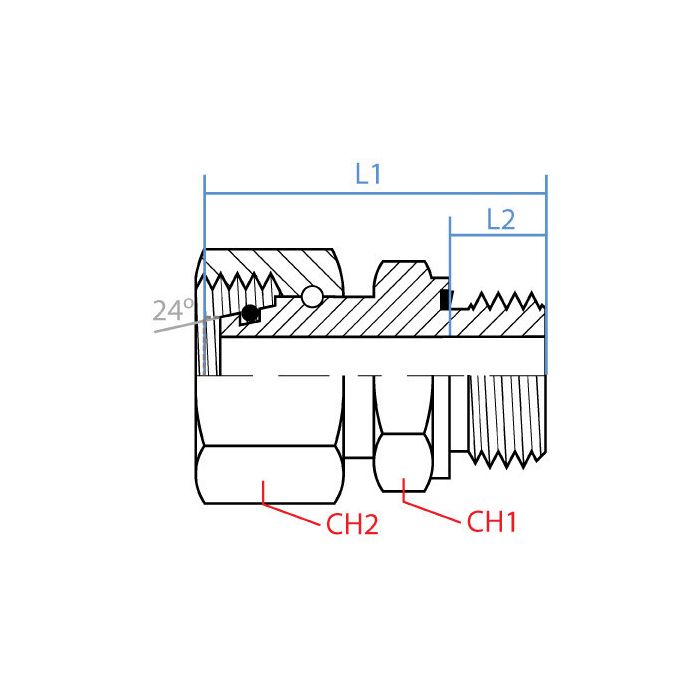

With widths of 55mm and 60mm for Adaptall Ch1 and Ch2, respectively, and an overall length of 82mm, this fitting is engineered for precise integration. The compact L2 length of 22mm aids in space-efficient installations. Manufactured by Adaptall, this product maintains high standards of quality, ensuring a secure and leak-resistant seal in high-pressure situations.

SKU: 5302S-38-24

Supplier Part Number (MPN): 5302S-38-24

Specifications

CH1 Width 55mm	CH2 Width 60mm	L1 Length 82mm	L2 Length 22mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M52 X 2.0	Side 1 Gender F	Side 1 Size S38	Side 1 Type Din Tube	Side 2 Callout G 1-1/2 - 11	Side 2 Gender M	Side 2 Size 1-1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302S-38-24	Product Weight 1.83 lbs

Product Questions & Answers (2)

Question by: Janice A on Dec 7, 2025, 8:31 AM

Is this thing steel all the way through? Just want to make sure it can handle what I'm throwin' at it.

Answer by: Customer Support on Dec 9, 2025, 6:44 AM

Yes sir, this fitting is constructed entirely from steel, so it should be able to hold up in demanding industrial hydraulic applications.

Question by: Stan S on Nov 9, 2025, 5:10 PM

Got a hydraulic line running M52 x 2.0 DIN tube on one end that needs to tie into a G 1-1/2 - 11 BSPP port, this fitting handle that crossover?

Answer by: Customer Support on Nov 11, 2025, 3:01 PM

That's what this one's built for. One side is a female DIN tube connection sized at M52 x 2.0, and the other is a male BSPP at G 1-1/2 - 11. Steel construction, straight configuration, so there's no angling involved. Overall length runs 82mm with an L2 measurement of 22mm, which helps when space is a little tight around the connection point.
