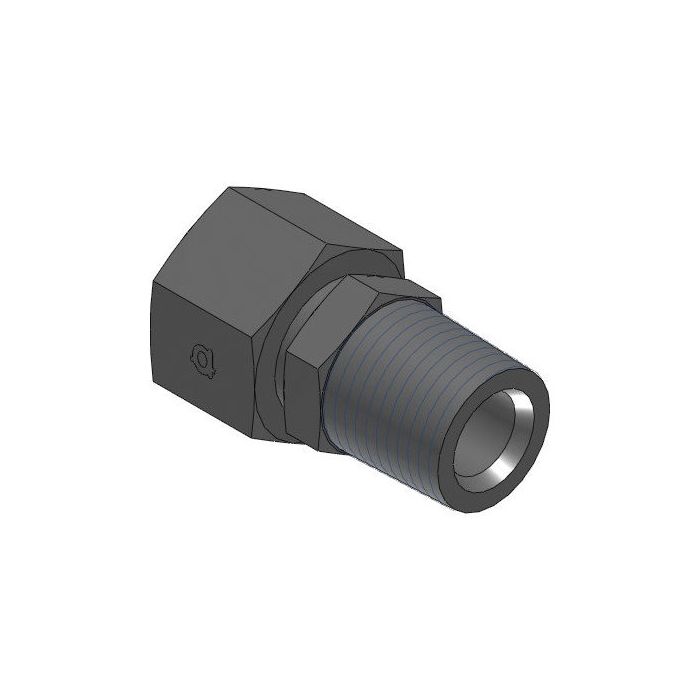

F Din X Male Npt

Ask A Question

Description & Features

A straight steel adapter configured with a female DIN tube connection on one end and a male NPT thread on the other, the F Din X Male Npt bridges metric and imperial threaded connections in hydraulic and industrial fluid systems. The DIN side features an M12 x 1.5 thread (L06 size) with an 11mm wrench flat, while the NPT side is sized at 1/8" – 27 NPTF with a 14mm wrench flat.

Manufactured by Adaptall, this adapter measures 36.5mm in overall length with a 10mm thread engagement on the NPT end. Steel construction provides reliable durability across a range of hydraulic circuit and fluid line applications where DIN tube fittings must mate with NPT-ported equipment or components.

SKU: 5307L-06-02

Supplier Part Number (MPN): 5307L-06-02

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
1/8 in
Connection Type
Female Metric Swivel, MNPT
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353
Dimensions
36.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
5307 Series
Thread Size
M12x1.5 x 1/8-27

Product Questions & Answers (2)

Question by: Kent S on Jul 12, 2025, 2:57 PM
Reckon this here adapter will let me hook up a DIN fitting to somethin' with an NPT port?
Answer by: Customer Support on Jul 13, 2025, 7:31 PM
Yes, this straight steel adapter is designed to bridge metric DIN tube connections to standard NPT threaded connections, which should make it handy for mix-and-match setups.
Question by: Lyle H on May 24, 2025, 4:54 PM
got a piece of equipment with a 1/8" NPT port and I need to tie into a metric DIN tube line, this adapter gonna bridge that gap?
Answer by: Customer Support on May 26, 2025, 1:24 PM
That's exactly what this fitting is built for. One end is a female DIN tube connection with an M12 x 1.5 thread (L06 size), and the other end is a 1/8"-27 NPTF male thread. Steel construction throughout, straight configuration, so it threads right into your NPT-ported equipment and accepts your DIN tube line on the other side without any intermediate adapter stack.
