F Din X Male Npt

Description & Features

This steel straight adapter features a female DIN tube end and a male NPT end. The Adaptall fitting connects an M26 X 1.5 DIN tube to a 1/2 - 14 NPTF thread.

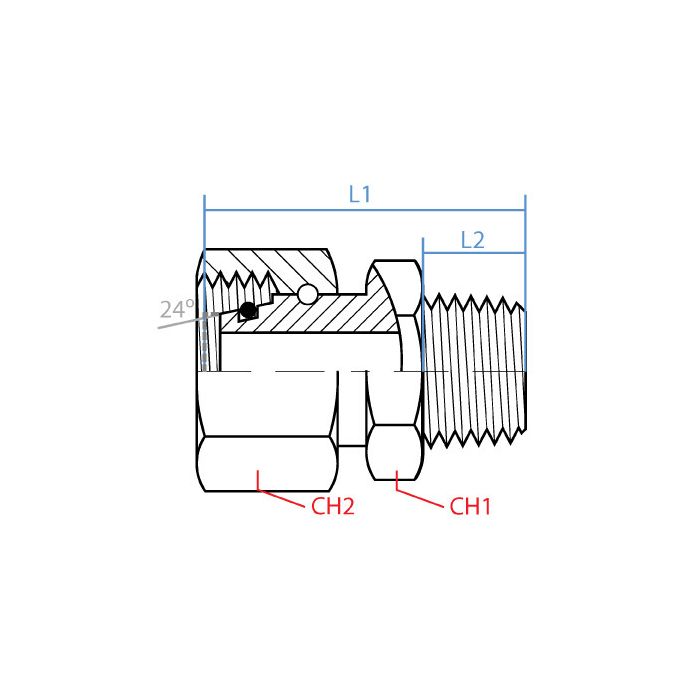

With a Side 1 size of L18 and a Side 2 size of 1/2", this F Din X Male Npt adapter provides a secure and reliable connection. The Adaptall Ch1 width is 27mm, and the Adaptall Ch2 width is 32mm. The Adaptall L1 length is 47.5mm, and the Adaptall L2 length is 20mm.

SKU: 5307L-18-08

Supplier Part Number (MPN): 5307L-18-08

Specifications

CH1 Width 27mm	CH2 Width 32mm	L1 Length 47.5mm	L2 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender F	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307L-18-08	Product Weight 0.36 lbs

Product Questions & Answers (2)

Question by: Glen B on Nov 7, 2025, 12:26 PM

got a hose end that’s M26 x 1.5 din, will this adapter get me over to 1/2-14 NPTF on the other side?

Answer by: Customer Support on Nov 9, 2025, 6:29 AM

You can use it for that exact changeover. Side 1 is a female DIN tube end with an M26 x 1.5 callout (size L18), and Side 2 is a male 1/2 - 14 NPTF thread.

Question by: Daryl D on Jun 20, 2025, 9:43 PM

Got a hydraulic line running M26 x 1.5 DIN tube and need to tie into a 1/2 inch NPT port, this the right fitting for that?

Answer by: Customer Support on Jun 22, 2025, 6:07 AM

That's what this one handles. Side 1 is a female DIN tube end with an M26 x 1.5 thread, and Side 2 is a male 1/2-14 NPTF thread. Steel construction, straight configuration, so it drops right in without any angled offset. The L18 size on the DIN side and 1/2 inch on the NPT side line up with what you described.
