F Din X Male Npt

Description & Features

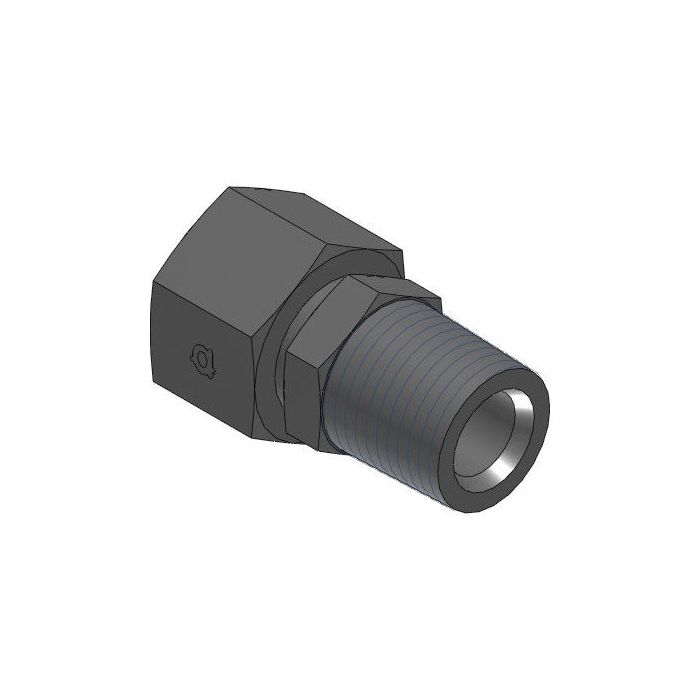

Crafted from durable steel, this Adaptall fitting seamlessly connects hydraulic systems with precision. It features a straight design with a female DIN tube on one end, measuring M30 x 2.0, and a male NPT thread on the other, sized at 3/4 - 14 NPTF. The dimensions include a width of 30mm on the DIN side and 36mm on the NPT side, along with a total length of 49mm, ensuring a secure and reliable fit in critical industrial applications.

The F Din X Male Npt fitting is ideal for high-performance environments requiring robust and leak-proof connections. Its straightforward installation and compatibility with common hydraulic components make it an essential part for maintaining system efficiency and performance.

SKU: 5307L-22-12

Supplier Part Number (MPN): 5307L-22-12

Specifications

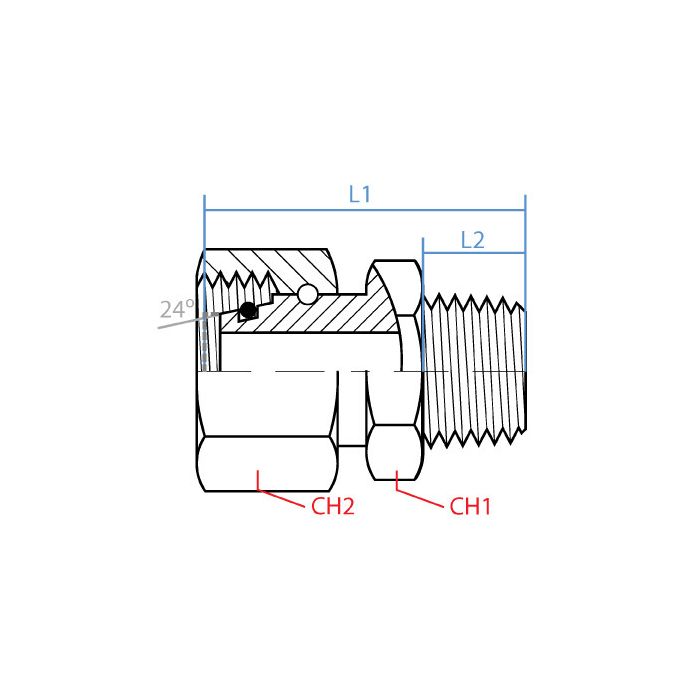

CH1 Width 30mm	CH2 Width 36mm	L1 Length 49mm	L2 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307L-22-12	Product Weight 0.50 lbs

Product Questions & Answers (2)

Question by: Rex W on May 10, 2025, 6:06 PM

Got a line running M30 x 2.0 DIN tube on one end and need to tie into a 3/4 inch NPT port on a pump housing, this fitting do that job straight out of the box?

Answer by: Customer Support on May 12, 2025, 5:58 PM

That's what this one's built for. One end is a female DIN tube connection at M30 x 2.0 and the other is a male 3/4-14 NPTF thread, so it bridges those two standards without any additional adapters in between. The straight profile keeps things clean in tight hydraulic connections runs, and the steel construction holds up in working hydraulic environments. At 49mm total length, it's a compact piece, so just make sure you've got enough clearance around that pump port before you button everything up.

Question by: Neil B on Apr 8, 2025, 5:44 PM

Reckon this'll hold up in a hydraulic system running at high pressure all day long?

Answer by: Customer Support on Apr 10, 2025, 10:11 AM

Crafted from durable steel, this fitting is designed for high-performance environments needing robust, leak-proof connections. Its construction ensures it can withstand the demands of continuous, high-pressure hydraulic applications.
