F Din X Male Npt

Description & Features

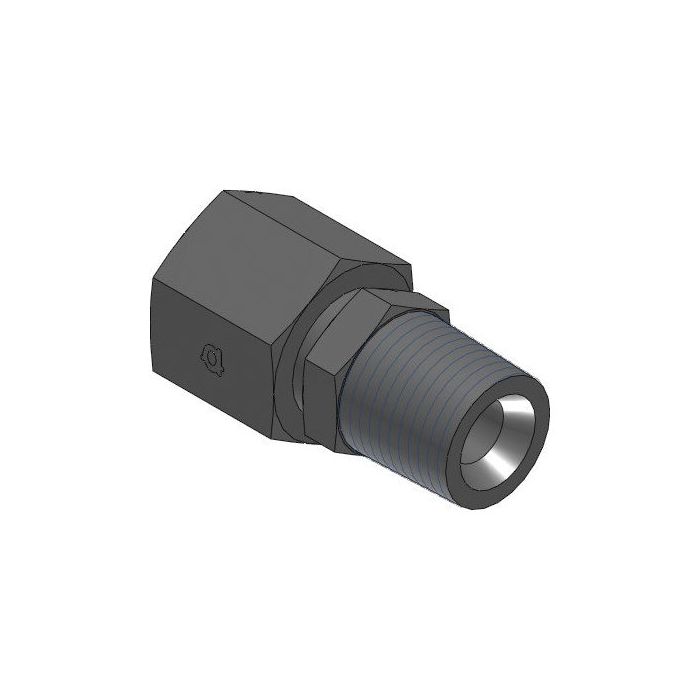

Manufactured from steel in a straight configuration, this adapter connects a female DIN tube fitting (M22 x 1.5 thread) on one end to a male 1/2" NPTF thread on the other. The F Din X Male Npt adapter is designed for applications where DIN-standard tube connections must interface with NPT-threaded ports, a common requirement in hydraulic systems using mixed fitting standards.

With a Ch1 wrench width of 22mm and Ch2 width of 27mm, the adapter accommodates standard tooling for installation. Overall length is 53.5mm with an L2 length of 20mm. The 1/2-14 NPTF thread on the male side provides a reliable mechanical seal suited to hydraulic service. Supplied by Adaptall, this fitting is built to the dimensional and quality standards that brand is known for in the hydraulic adapter market.

SKU: 5307S-14-08

Supplier Part Number (MPN): 5307S-14-08

Specifications

Brand adapt-all	Connection Size 1 14 mm	Connection Size 2 1/2 in	Connection Type Female Metric Swivel, MNPT	Connection Type 1 Female DIN 24 deg Tube Swivel	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353	Dimensions 53.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 5307 Series	Thread Size M22x1.5 x 1/2-14

Product Questions & Answers (1)

Question by: Harvey M on Jan 30, 2026, 4:52 PM

got a DIN tube end that’s M22 x 1.5, will this adapter screw right on and give me a 1/2 NPT male on the other side?

Answer by: Customer Support on Feb 1, 2026, 6:01 AM

For tying two standards together, it’s a straight steel adapter with a female DIN tube fitting on one end (M22 x 1.5) and a male 1/2-14 NPTF on the other, so it’s meant to bridge exactly that DIN-to-NPT connection.
