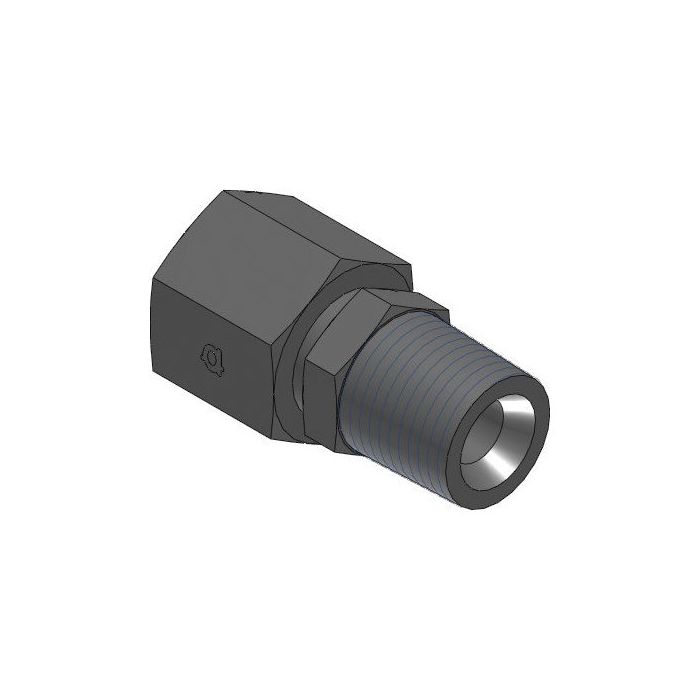

main product photo

F Din X Male Npt

Ask A Question

Description & Features

This steel straight adapter features a female DIN (Deutsches Institut für Normung) tube connection on one end and a male NPT (National Pipe Taper) thread on the other. The DIN side has a M36 x 2.0 callout and S25 size, while the NPT side measures 1" with an 11.5 NPTF callout.

This F Din X Male Npt Adaptall fitting has a Side 1 width of 36mm and a Side 2 width of 46mm. L1 Length is 68mm and L2 Length is 25mm.

SKU: 5307S-25-16

Supplier Part Number (MPN): 5307S-25-16

Specifications

Brand
adapt-all
Connection Size 1
S25
Connection Size 2
1 in
Connection Type
Female Metric Swivel, MNPT
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353
Dimensions
68 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
36 mm, 46 mm
Material
Steel
Material Construction
Carbon Steel
Series
5307 Series
Thread Size
M36x2 x 1-11-1/2

Product Questions & Answers (1)

Question by: Debbie M on Mar 7, 2026, 8:55 PM
What's the DIN side of this adapter used for?
Answer by: Customer Support on Mar 9, 2026, 11:37 AM
It's designed to connect to DIN (Deutsches Institut für Normung) tubes, offering a secure and standardized connection point.
