Danfoss / Eaton HMF135DMDR0AX000000A

Description & Features

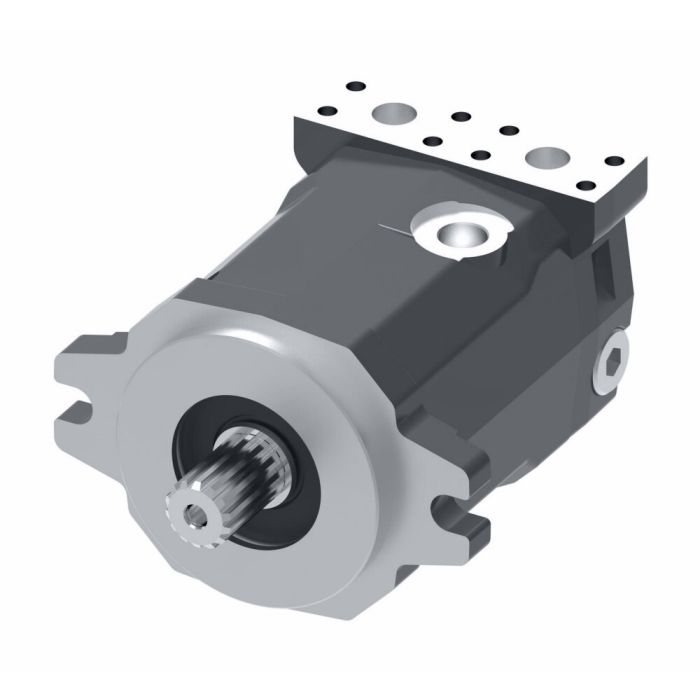

Built for high-load mobile and industrial hydraulic applications, the Danfoss / Eaton HMF135DMDR0AX000000A is a fixed displacement axial-piston motor from the DuraForce HMF series. It delivers a torque rating of 540 Newton metres and is rated for operating pressures up to 420 bar (6,100 psi), making it well-suited to demanding drive and swing circuits across a wide range of equipment.

Cast iron construction supports durability in tough field environments. The HMF series covers displacements from 28cc to 280cc and is highly configurable, allowing the motor to be matched closely to the requirements of specific machine platforms. Typical applications include transit mixers, road rollers, motor graders, dozers, cranes, sweepers, lift trucks, tractors, windrowers, planters, and marine and oil and gas equipment.

SKU: 530AW00165A

Supplier Part Number (MPN): 530AW00165A

Specifications

Application Transit Mixer, Road Roller, Motor Grader, Dozer, Crane, Sweeper, Lift Truck, Tractor, Windrower, Planter, Oil & Gas, Marine	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Displacements: 28cc to 280cc (1.71 to 17.1 cu in)\|Operating pressure: 420 bar (6100 psi)\|Highly configurable	ICC HS HP Fixed Axial-Piston Motors	Language English	Product Material Cast Iron	Product Width 9.84	Special Features None	Sub Brand DuraForce	Supplier Part Number 530AW00165A	Torque Rating 540 newton metre	Torque Rating 540 newton metre	Product Weight 189.50 lbs

Product Questions & Answers (1)

Question by: Johnny R on Nov 20, 2025, 2:21 PM

What pressure is this motor rated for?

Answer by: Customer Support on Nov 22, 2025, 6:18 AM

This fixed displacement axial-piston motor is rated for operating pressures up to 420 bar (6,100 psi).
