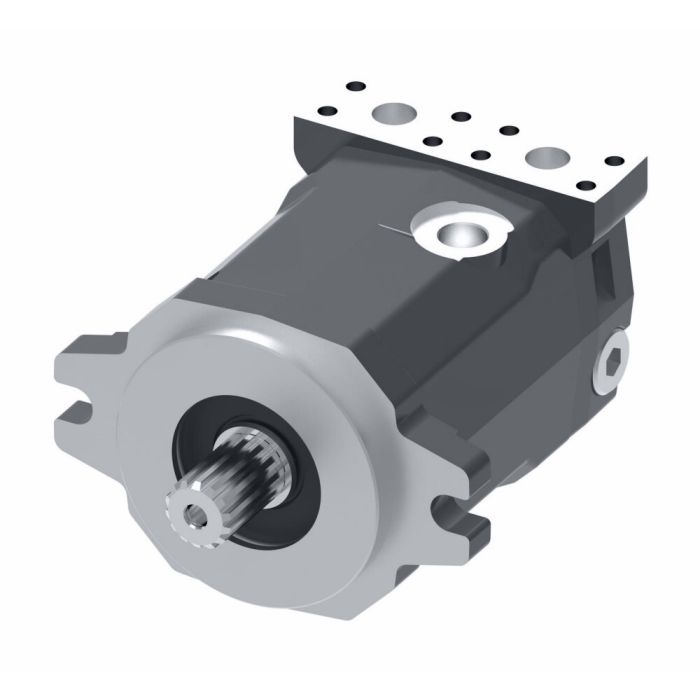

Built for demanding mobile and industrial hydraulic applications, the Danfoss / Eaton DuraForce HMF055 is a fixed axial-piston motor rated for operating pressures up to 420 bar (6,100 psi) and a torque output of 218 Nm. Its cast iron construction supports reliable performance across high-load duty cycles.
The HMF series covers displacements from 28cc to 280cc, making it a versatile platform suited to a wide range of machine configurations. Typical applications include transit mixers, road rollers, motor graders, dozers, cranes, sweepers, lift trucks, tractors, windrowers, planters, and marine and oil & gas equipment. The highly configurable design allows the motor to be specified to match specific drive requirements across these sectors.
SKU: 530AW00424A
Supplier Part Number (MPN): 530AW00424A
|
Alternate Part Numbers
MINO-00900X29647
|
Application
Transit Mixer, Road Roller, Motor Grader, Dozer, Crane, Sweeper, Lift Truck, Tractor, Windrower, Planter, Oil & Gas, Marine
|
Brand
Danfoss Power Solutions II (Char-Lynn)
|
Brand
Char-Lynn
|
Pack Size
1.00
|
UOM
EA
|
Features
Displacements: 28cc to 280cc (1.71 to 17.1 cu in)|Operating pressure: 420 bar (6100 psi)|Highly configurable
|
ICC
HS HP Fixed Axial-Piston Motors
|
Language
English
|
Product Material
Cast Iron
|
Product Width
7.88
|
Special Features
None
|
Sub Brand
DuraForce
|
Supplier Part Number
530AW00424A
|
Torque Rating
218 newton metre
|
Torque Rating
218 newton metre
|
Product Weight
41.88 lbs
|
