F Din X M Din Reducer

Ask A Question

Description & Features

This steel F Din X M Din Reducer features a straight shape and is designed for hydraulic applications. It adapts from a female M16 X 1.5 Din Tube connection to a male M14 X 1.5 Din Tube connection.

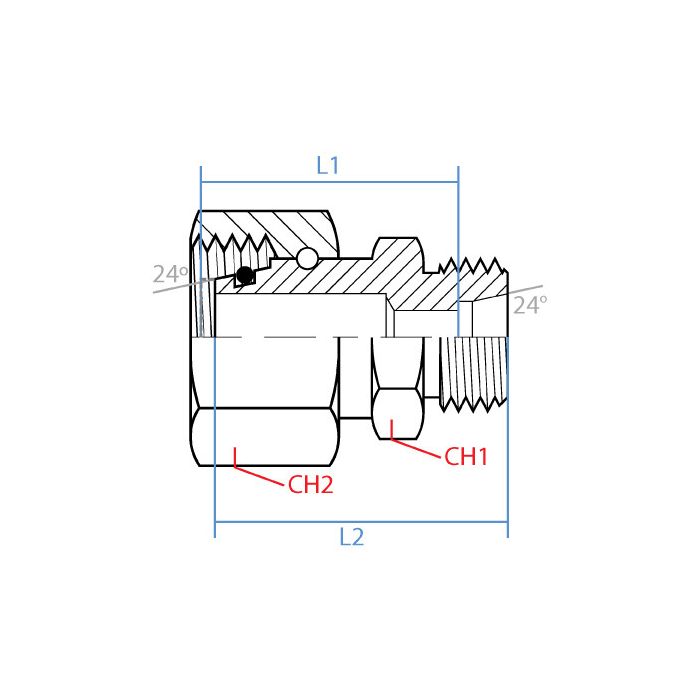

The Adaptall reducer has a Side 1 size of L10 and a Side 2 size of L08. The Ch1 width measures 14mm, while the Ch2 width is 19mm. The L1 length is 25mm, and the L2 length is 31mm.

SKU: 5315L-10-08

Supplier Part Number (MPN): 5315L-10-08

Specifications

Brand
adapt-all
Connection Size 2
8 mm
Connection Type
Female Metric Swivel, Male Metric
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353
Dimensions
34 mm L
Finish
Zinc-Plated
Fitting Type
Reducer
Material
Steel
Material Construction
Carbon Steel
Series
5315 Series
Thread Size
M16x1.5 x M14x1.5

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
F Din X M Din Reducer

5315L-08-06

8 mm

6 mm

M14x1.5 x M12x1.5

F Din X M Din Reducer

5315L-10-06

6 mm

M16x1.5 x M12x1.5

F Din X M Din Reducer

5315L-12-08

L12

8 mm

M18x1.5 x M14x1.5

17 x 22 mm

F Din X M Din Reducer

5315L-15-06

L15

6 mm

M22x1.5 x M12x1.5

F Din X M Din Reducer

5315L-15-08

L15

8 mm

M22x1.5 x M14x1.5

F Din X M Din Reducer

5315L-15-12

L15

12 mm

M22x1.5 x M18x1.5

F Din X M Din Reducer

5315L-18-12

18 mm

12 mm

M26x1.5 x M18x1.5

F Din X M Din Reducer

5315L-18-15

18 mm

15 mm

M26x1.5 x M22x1.5

F Din X M Din Reducer

5315L-22-15

L22

15 mm

M30x2 x M22x1.5

F Din X M Din Reducer

5315L-22-18

L22

18 mm

M30x2 x M26x1.5

F Din X M Din Reducer

5315L-28-18

L28

18 mm

M36x2 x M26x1-1/2

36 mm, 46 mm

F Din X M Din Reducer

5315L-28-22

L28

22 mm

M36x2 x M30x2

36 mm, 46 mm

F Din X M Din Reducer

5315L-35-22

22 mm

M45x2 x M30x2

F Din X M Din Reducer

5315L-42-35

L42

35 mm

M52x2 x M45x2

50 mm, 60 mm

Product Questions & Answers (3)

Question by: Gene S on Jul 7, 2025, 1:21 PM
Will this here reducer fit right for connecting a M16 to a M14 DIN tube?
Answer by: Customer Support on Jul 9, 2025, 6:26 AM
Yes, it is designed to adapt a female M16 X 1.5 DIN Tube connection to a male M14 X 1.5 DIN Tube connection, so it should work for that application.
Question by: Neil S on Sep 27, 2025, 6:29 AM
got a female M16 x 1.5 DIN tube port but my line is M14 x 1.5. is this the right reducer for that?
Answer by: Customer Support on Sep 29, 2025, 6:00 AM
For stepping down between DIN tube sizes, it goes from a female M16 x 1.5 connection on one side to a male M14 x 1.5 connection on the other. Side 1 is L10 (female) and Side 2 is L08 (male), so it matches that M16 to M14 reduction.
Question by: Cindy S on Aug 22, 2025, 7:23 PM
got an L10 female DIN port on a manifold block and need to step it down to hook up an L08 male fitting, this the right part for that?
Answer by: Customer Support on Aug 24, 2025, 9:29 AM
That's what this reducer is built for. Side 1 is a female M16 x 1.5 DIN tube connection at L10, and Side 2 is a male M14 x 1.5 DIN tube connection at L08. Steel construction, straight profile, so it drops right in between those two sizes without any angled offset to deal with.
