F Din X M Din Reducer

Description & Features

Manufactured from steel in a straight configuration, this Adaptall F Din X M Din Reducer connects a female DIN tube fitting (M30 x 2.0 thread, L22 size) to a male DIN tube fitting (M26 x 1.5 thread, L18 size), making it well suited for reducing between two DIN tube line sizes in hydraulic systems where a direct match is not available.

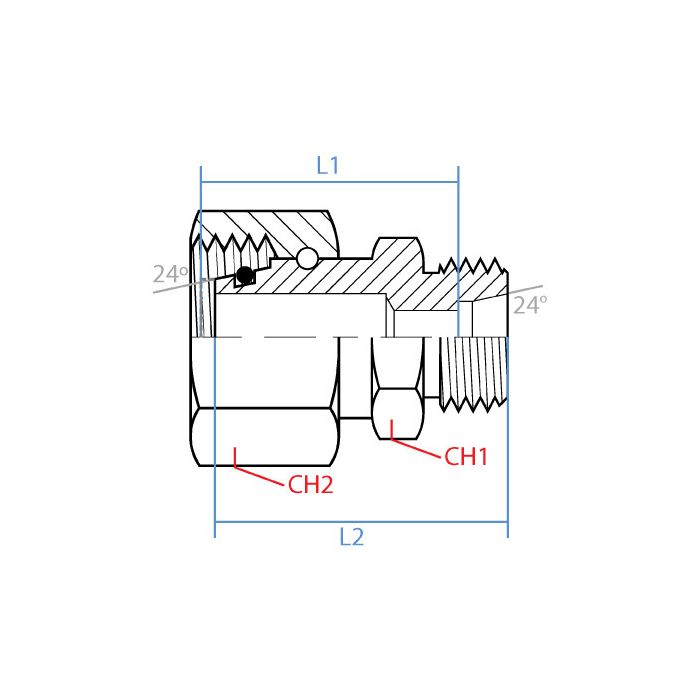

The fitting measures 33.5mm on the female side length and 39.5mm on the male side length, with wrench widths of 27mm and 36mm respectively. Its straight body keeps inline routing clean and compact where space is a consideration.

SKU: 5315L-22-18

Supplier Part Number (MPN): 5315L-22-18

Specifications

CH1 Width 27mm	CH2 Width 36mm	L1 Length 33.5mm	L2 Length 39.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315L-22-18	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Kent P on Aug 4, 2025, 3:20 PM

Got a line coming off an L22 DIN fitting and need to step it down to L18, this reducer do that job straight inline?

Answer by: Customer Support on Aug 6, 2025, 6:07 AM

That's exactly what it's built for. One end threads onto an M30 x 2.0 female DIN connection at the L22 size, and the other presents an M26 x 1.5 male DIN at the L18 size. The straight body keeps everything in line without any offset, so if your routing runs clean and you just need to bridge those two DIN tube sizes, this fitting handles it directly.
