F Din X M Din Reducer

Description & Features

This steel reducer, also known as a F Din X M Din Reducer, is manufactured by Adaptall. It features a straight shape and is designed to connect DIN tubes of different sizes. Side 1 is a female Din Tube with a size of L28 and a M36 x 2.0 callout. Side 2 is a male Din Tube with a size of L22 and a M30 x 2.0 callout.

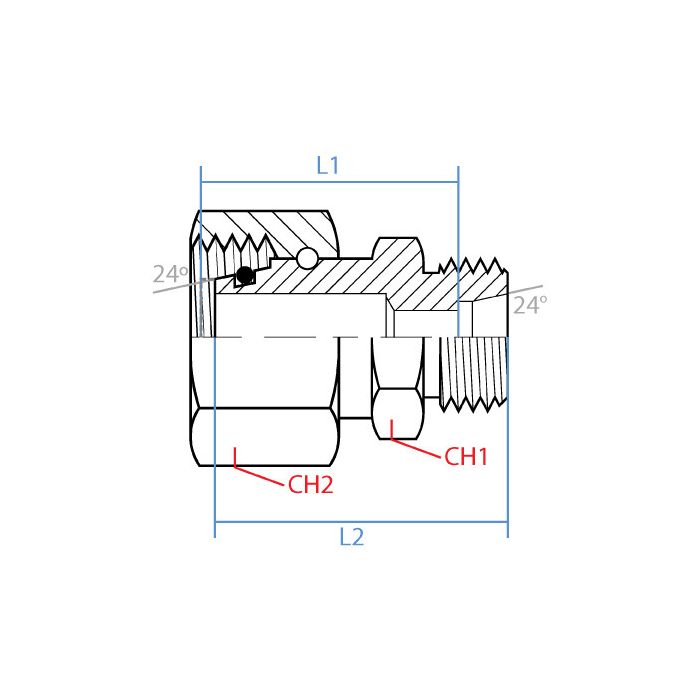

The Adaptall Ch1 width measures 36mm, while the Adaptall Ch2 width is 46mm. The Adaptall L1 length is 37.5mm, and the Adaptall L2 length is 43.5mm.

SKU: 5315L-28-22

Supplier Part Number (MPN): 5315L-28-22

Specifications

CH1 Width 36mm	CH2 Width 46mm	L1 Length 37.5mm	L2 Length 43.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender F	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size L22	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315L-28-22	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Ray F on Jan 17, 2026, 7:17 AM

got a DIN tube setup with an L28 female end, will this reducer step it down to an L22 male?

Answer by: Customer Support on Jan 18, 2026, 2:17 PM

For stepping between two DIN tube sizes, this reducer is set up with Side 1 as a female DIN tube connection in size L28 with an M36 x 2.0 thread, and Side 2 as a male DIN tube connection in size L22 with an M30 x 2.0 thread.
