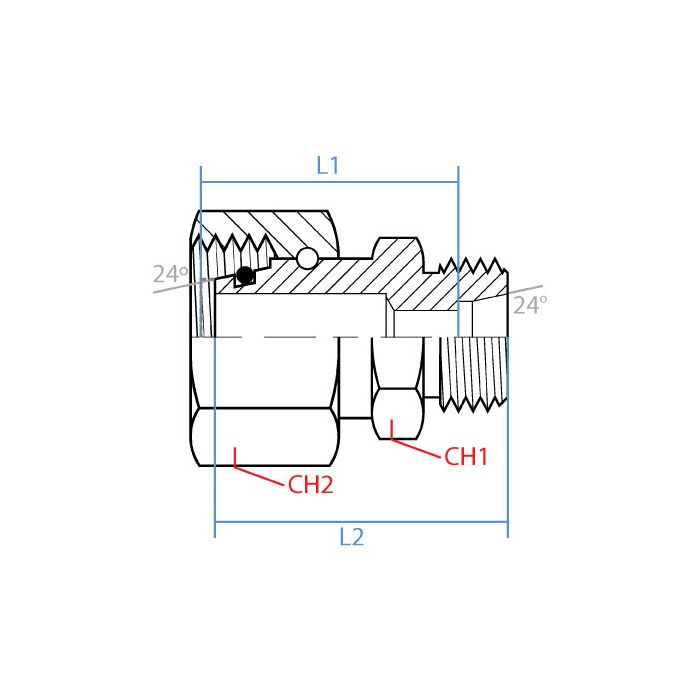

main product photo

F Din X M Din Reducer

Ask A Question

Description & Features

Crafted from durable steel, the F Din X M Din Reducer provides a reliable solution for connecting hydraulic systems with differing thread sizes. This straight reducer features a female DIN tube fitting on one side with an M18 x 1.5 thread and a male DIN tube fitting on the other side with an M14 x 1.5 thread, making it ideal for applications requiring secure and efficient flow transitions. The design ensures precise connections with a width of 17mm on the female side and 22mm on the male side, while the lengths of 27.5mm and 33mm further contribute to its robust construction.

Engineered by Adaptall, this reducer is suitable for industrial environments where adaptability and strength are paramount. Its straight shape and compatibility with DIN tube systems make it a versatile component in hydraulic setups demanding high performance and reliability. The part's precise dimensions and material selection are tailored for enduring performance in demanding settings.

SKU: 5315S-10-06

Supplier Part Number (MPN): 5315S-10-06

Specifications

Brand
adapt-all
Connection Size 2
6 mm
Connection Type
Female Metric Swivel, Male Metric
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353
Dimensions
39 mm L
Finish
Zinc-Plated
Fitting Type
Reducer
Hex Size
17 x 22 mm
Material
Steel
Material Construction
Carbon Steel
Series
5315 Series
Thread Size
M18x1.5 x M14x1.5

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
F Din X M Din Reducer

5315S-10-08

8 mm

M18x1.5 x M16x1.5

17 x 22 mm

F Din X M Din Reducer

5315S-16-10

S16

10 mm

M24x1.5 x M18x1.5

F Din X M Din Reducer

5315S-16-12

S16

12 mm

M24x1.5 x M20x1.5

F Din X M Din Reducer

5315S-25-20

S25

20 mm

M36x2 x M30x2

36 mm, 46 mm

F Din X M Din Reducer

5315S-30-25

30 mm

S25

M42x2 x M36x2

41 mm, 50 mm

F Din X M Din Reducer

5315S-38-20

38S

20 mm

M52x2 x M30x2

50 mm, 60 mm

F Din X M Din Reducer

5315S-38-25

38S

S25

M52x2 x M36x2

50 mm, 60 mm

F Din X M Din Reducer

5315S-38-30

38S

S30

M52x2 x M42x2

50 mm, 60 mm

Product Questions & Answers (3)

Question by: Shane B on Feb 6, 2026, 1:27 PM
Got a line running M18 x 1.5 DIN fittings on one end and need to tie into something with M14 x 1.5, this reducer do that job straight through?
Answer by: Customer Support on Feb 7, 2026, 4:58 PM
That's what this one's built for. One side carries the female M18 x 1.5 DIN tube connection and the other side is a male M14 x 1.5 DIN thread, so you're stepping down between those two sizes in a single straight fitting. Both sides are DIN tube type, so as long as your lines match those thread callouts, it'll connect right up without any adapters in between.
Question by: Darryl R on Jul 22, 2025, 4:53 PM
Will this here reducer fit right with my current setup, seeing as how the threads are different sizes?
Answer by: Customer Support on Jul 24, 2025, 10:50 AM
It's designed to bridge connections between hydraulic systems that use different sized DIN tube fittings. The reducer has a female DIN tube fitting with an M18 x 1.5 thread on one side, and a male DIN tube fitting with an M14 x 1.5 thread on the other, making it good for those transitions.
Question by: Wade S on Nov 15, 2025, 5:56 PM
got a din tube line with an M18 x 1.5 female end, will this reducer step it down to M14 x 1.5 on the other side?
Answer by: Customer Support on Nov 17, 2025, 2:40 PM
It transitions from a female DIN tube fitting with an M18 x 1.5 thread to a male DIN tube fitting with an M14 x 1.5 thread, all in a straight reducer body.
