F Din X M Din Reducer

Description & Features

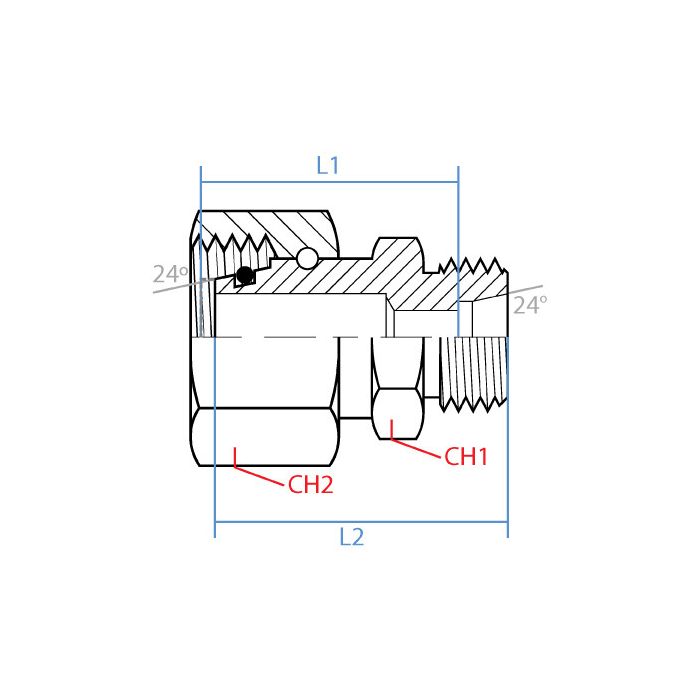

Crafted from durable steel, this straight reducer ensures reliable performance in demanding industrial environments. The F Din X M Din Reducer features a female M18 x 1.5 DIN tube connection on one side and a male M16 x 1.5 DIN tube connection on the opposite end, making it an ideal choice for precise hydraulic system configurations. With widths of 17mm and 22mm for Adaptall Ch1 and Ch2 respectively, and lengths of 27.5mm and 33mm, it facilitates a seamless flow transition between different tube sizes.

Designed by Adaptall, this reducer balances robust construction with essential functionality, catering to diverse hydraulic applications. The straightforward installation process and compatibility with standard DIN tube systems underscore its practical utility. Whether updating or maintaining your hydraulic setup, this reducer offers a reliable solution for connecting differing tube sizes.

SKU: 5315S-10-08

Supplier Part Number (MPN): 5315S-10-08

Specifications

CH1 Width 17mm	CH2 Width 22mm	L1 Length 27.5mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315S-10-08	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Debbie G on Apr 29, 2025, 1:21 PM

trying to step down from an M18 x 1.5 din tube line to M16 x 1.5, is this the right reducer?

Answer by: Customer Support on May 1, 2025, 6:10 AM

For stepping between those two DIN tube thread sizes, it matches that setup: one side is a female M18 x 1.5 DIN tube connection and the other side is a male M16 x 1.5 DIN tube connection.
