F Din X M Din Reducer

Description & Features

Designed for reducing between two DIN tube connections, this steel straight adapter transitions from a female M24 x 1.5 DIN interface (S16) to a male M18 x 1.5 DIN interface (S10). The F Din X M Din Reducer is manufactured by Adaptall and suits hydraulic line assemblies where a step-down between tube sizes is required in a compact, inline configuration.

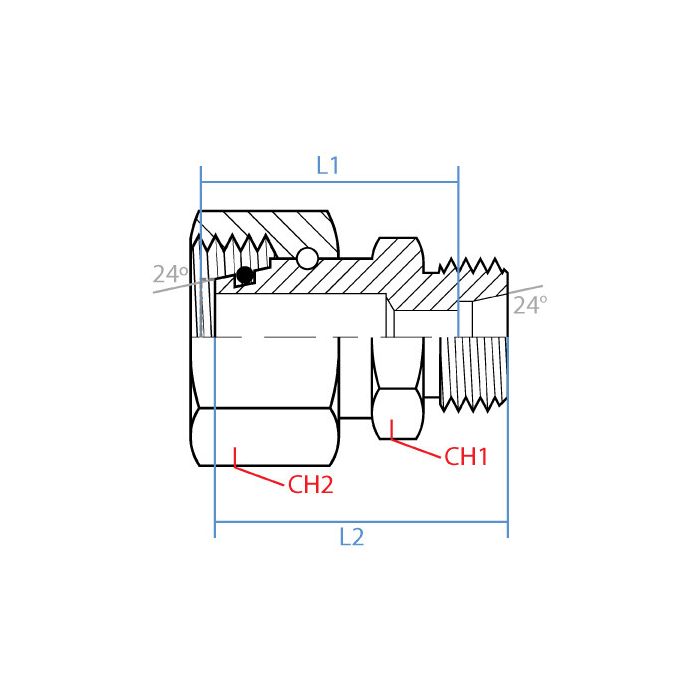

Constructed from steel with a straight profile, the adapter measures 31.5mm on the female side and 36.5mm on the male side, with wrench flats of 22mm and 30mm respectively. Its all-steel construction makes it suitable for demanding hydraulic service environments where connection integrity and durability are essential.

SKU: 5315S-16-10

Supplier Part Number (MPN): 5315S-16-10

Specifications

CH1 Width 22mm	CH2 Width 30mm	L1 Length 31.5mm	L2 Length 36.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender F	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size S10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315S-16-10	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Hugh B on Jun 17, 2025, 1:52 PM

got a female M24 x 1.5 DIN tube end on my line, will this step it down to a male M18 x 1.5?

Answer by: Customer Support on Jun 19, 2025, 6:20 AM

For stepping down between DIN tube connections, it goes from a female M24 x 1.5 (S16) on one side to a male M18 x 1.5 (S10) on the other, in a straight inline adapter.
