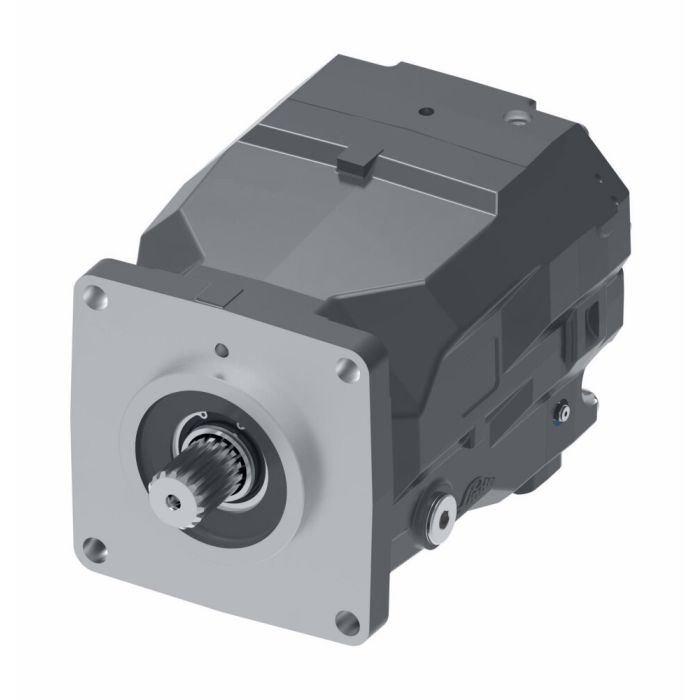

Designed for demanding propel and transmission applications, the Danfoss / Eaton DuraForce HMV210 is a high-pressure variable displacement axial-piston motor suited to heavy mobile and industrial machinery. Displacement ranges from 55cc to 280cc (3.57 to 17.1 cu in), allowing flexible matching to a wide range of drive requirements.
Rated to 420 bar (6,100 psi) operating pressure and delivering a torque output of 836 Nm, this unit handles high-load cycles with consistent performance. A through-drive option is available, making it well suited to tandem propel configurations where a second driven component is required.
Classified within the Char-Lynn high-pressure variable axial-piston motor range, the HMV210 is built for applications where precise displacement control and robust pressure handling are priorities.
SKU: 531AW00497A
Supplier Part Number (MPN): 531AW00497A
|
Alternate Part Numbers
MINO-00900X29808
|
Brand
Danfoss Power Solutions II (Char-Lynn)
|
Brand
Char-Lynn
|
Pack Size
1.00
|
UOM
EA
|
Features
Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (6100 psi)|Through-drive option for propel applications
|
ICC
HS HP Var Axial-Piston Motors
|
Language
English
|
Product Width
10.56
|
Special Features
None
|
Sub Brand
DuraForce
|
Supplier Part Number
531AW00497A
|
Torque Rating
836 newton metre
|
Torque Rating
836 newton metre
|
Product Weight
220.46 lbs
|
