DANFOSS / EATON-HMV105

Description & Features

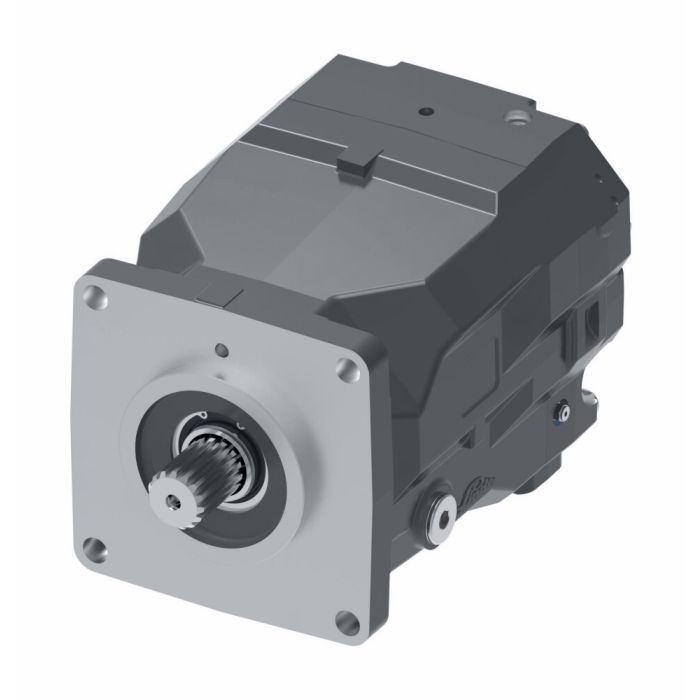

Designed for high-pressure variable displacement applications, the Danfoss / Eaton DuraForce HMV105 is an axial-piston variable motor built for demanding propel and drive circuits. Displacement ranges from 55cc to 280cc (3.57 to 17.1 cu in), and the motor is rated for operating pressures up to 420 bar (6,100 psi), making it well-suited for heavy mobile and industrial machinery.

A through-drive option supports tandem or series propel configurations, adding flexibility in powertrain layout. With a torque rating of 418 Nm, the HMV105 delivers strong rotational output across its displacement range. Part of the DuraForce HMV Series, this motor is classified within the high-speed, high-pressure variable axial-piston motor category.

SKU: 531AW00505A

Supplier Part Number (MPN): 531AW00505A

Specifications

Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Displacements: 55cc to 280cc (3.57 to 17.1 cu in)\|Operating pressure: 420 bar (6100 psi)\|Through-drive option for propel applications	ICC HS HP Var Axial-Piston Motors	Language English	Product Width 7.56	Special Features None	Sub Brand DuraForce	Supplier Part Number 531AW00505A	Torque Rating 418 newton metre	Torque Rating 418 newton metre	Product Weight 72.75 lbs

Product Questions & Answers (1)

Question by: Johnny W on May 11, 2025, 10:48 AM

What kinda operating pressure can this motor handle?

Answer by: Customer Support on May 12, 2025, 7:17 PM

This DuraForce HMV105 motor is rated to handle operating pressures up to 420 bar, which is about 6,100 psi. So it's built for high-pressure jobs.
