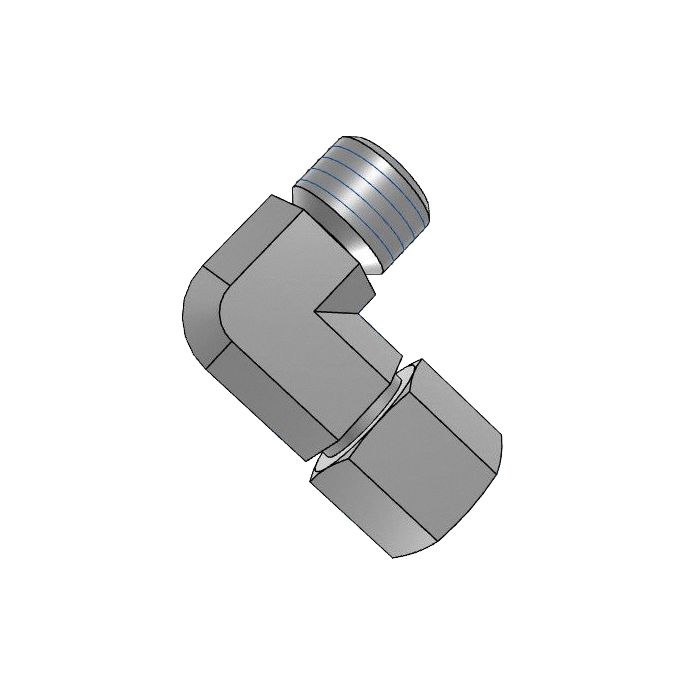

90* Din X Fdin Swivel Complete

Description & Features

Crafted by Adaptall America this 90 Din x Fdin Swivel Complete is designed for efficient fluid conveyance. The 90 elbow shape ensures a secure and precise connection between metric Din tube fittings enhancing the reliability and durability of industrial applications.

Manufactured from high-quality steel this swivel complete offers robust performance and longevity. With dimensions of CH1 width 12mm CH2 width 17mm L1 length 21mm L2 length 14mm and L3 length 27.5mm it is engineered for exact fit and function. The connection points are M14 x 1.5 male and female Din tube categorized under size L08.

Ideal for various industries requiring dependable and consistent metric connections this product is suitable for use in multiple settings where precision is paramount. The meticulous design ensures that the connection remains leak-proof and stable under standard operating pressures.

Supplier Part Number: 5360L-08C

Specifications

CH1 Width 12mm	CH2 Width 17mm	L1 Length 21mm	L2 Length 14mm	L3 Length 27.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size L08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08734042, Alternate Part Number MINO-03671X96019	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360L-08C	Product Weight 0.11 lbs

Product Questions & Answers (1)

Question by: Duane C on Sep 16, 2025, 12:18 PM

Will this fitting work with standard metric tubing, or does it need a special DIN spec?

Answer by: Customer Support on Sep 18, 2025, 6:40 AM

This 90-degree elbow fitting is designed to create a secure connection specifically between metric DIN tube fittings.
