90* Din X F Din Swivel

Description & Features

Configured as a 90° elbow in steel construction, this Adaptall 90° Din X F Din Swivel provides a right-angle connection between two M16 x 1.5 DIN tube ends, one male, one female, in a compact, swivel-capable assembly. The swivel feature on the female side allows rotational adjustment during installation, helping to align tube runs without stressing connected components.

Both sides are rated at the L10 size designation with matching M16 x 1.5 thread callouts, making this a same-size, same-thread adapter suited for use within DIN hydraulic tube circuits. Key dimensions include a 22mm L1 length, 15mm L2, and 29mm L3, with wrench flats of 14mm and 19mm across the two ends. Steel construction provides the strength and durability expected in hydraulic line connections operating under pressure.

SKU: 5360L-10

Supplier Part Number (MPN): 5360L-10

Specifications

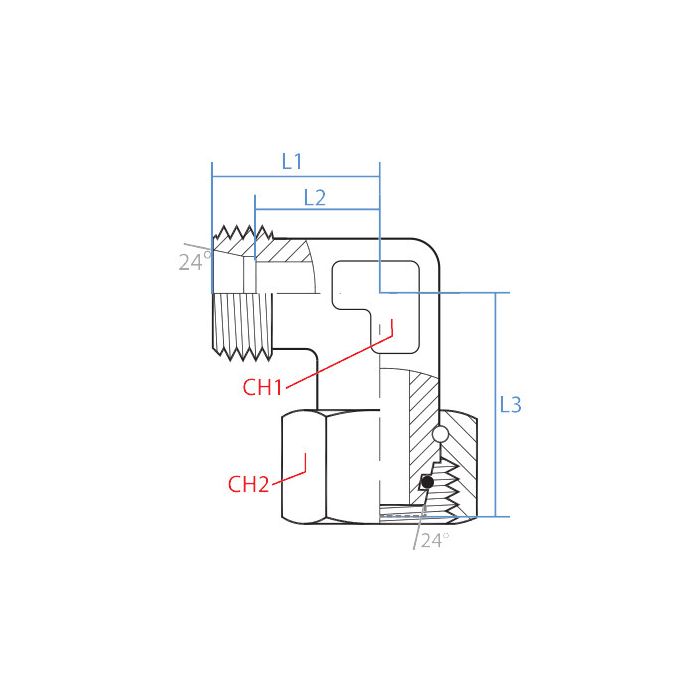

CH1 Width 14mm	CH2 Width 19mm	L1 Length 22mm	L2 Length 15mm	L3 Length 29mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size L10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360L-10	Product Weight 0.20 lbs
