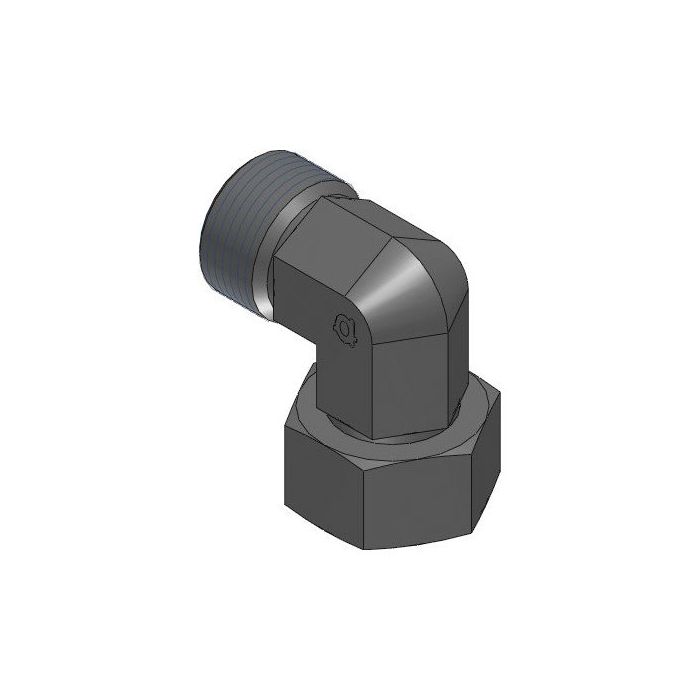

90* Din X F Din Swivel

Description & Features

This Adaptall 90° elbow features a Metric DIN tube connection on both ends. Constructed of steel, this 90* Din X F Din Swivel is designed with a M18 X 1.5 callout on Side 1 (male) and Side 2 (female).

This fitting offers a Side 1 size of L12 and a Side 2 size of L12. The Adaptall Ch1 width is 17mm, and the Adaptall Ch2 width is 22mm.

SKU: 5360L-12

Supplier Part Number (MPN): 5360L-12

Specifications

Brand adapt-all	Connection Size 1 L12	Connection Size 2 12 mm	Connection Type Female Metric Swivel, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 17 x 22 mm	Material Steel	Material Construction Carbon Steel	Series 5360 Series	Thread Size M18x1.5

Product Questions & Answers (1)

Question by: Tony M on Oct 18, 2025, 11:39 AM

both sides on this fitting are M18 x 1.5 thread, right? just want to make sure before I order

Answer by: Customer Support on Oct 20, 2025, 6:46 AM

Correct on both counts. Side one and side two are each M18 x 1.5, and both are DIN tube type connections. The difference is that side one is male and side two is female, which is what makes it a swivel configuration rather than a standard elbow. The 90 degree angle lets you redirect the line without having to bend tubing or reposition the component it's connecting to.
