90* Din X F Din Swivel

Description & Features

Constructed from steel, this 90° elbow fitting connects two M22 x 1.5 DIN tube ends, one male, one female swivel, making it well suited for directional changes in high-pressure hydraulic lines where fixed-angle routing is required. The swivel on the female side allows for rotational adjustment during installation, reducing the risk of line stress or misalignment.

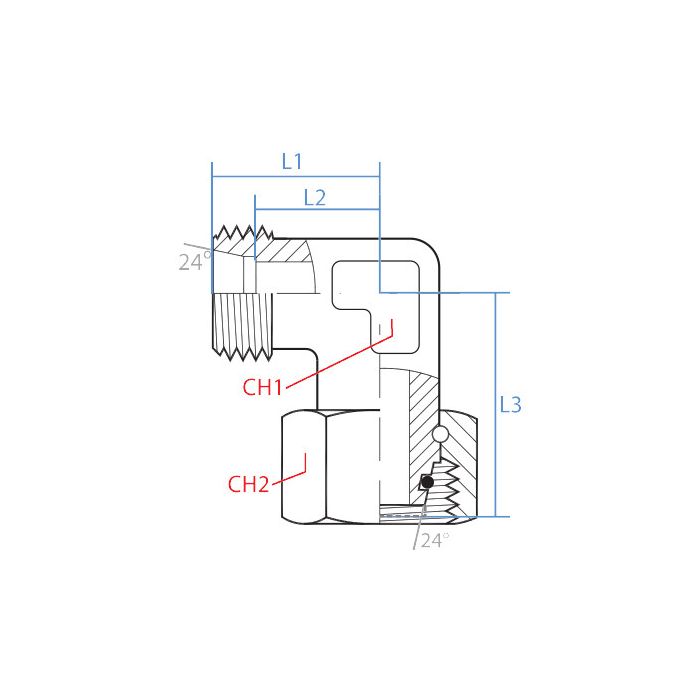

The 90* Din X F Din Swivel is an Adaptall fitting sized at L15, with a Ch1 width of 19mm and Ch2 width of 27mm. Overall assembled dimensions span an L1 of 28mm, L2 of 21mm, and L3 of 32.5mm, keeping the fitting compact for use in confined hydraulic assemblies. Both connection sides share the same M22 x 1.5 thread specification, ensuring symmetrical compatibility at each end.

SKU: 5360L-15

Supplier Part Number (MPN): 5360L-15

Specifications

CH1 Width 19mm	CH2 Width 27mm	L1 Length 28mm	L2 Length 21mm	L3 Length 32.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360L-15	Product Weight 0.33 lbs

Product Questions & Answers (1)

Question by: Floyd P on Sep 18, 2025, 9:16 AM

both sides on this thing are M22 x 1.5 thread, so does that mean it connects two fittings with the same size DIN tube ends?

Answer by: Customer Support on Sep 19, 2025, 1:14 PM

Correct on the threading. Both ends carry an M22 x 1.5 thread in the L15 size, so you're working with matched DIN tube connections on each side. One end is male and the other is female, which is what makes it useful for joining or extending a run where you need that 90 degree turn without mismatching thread sizes.
